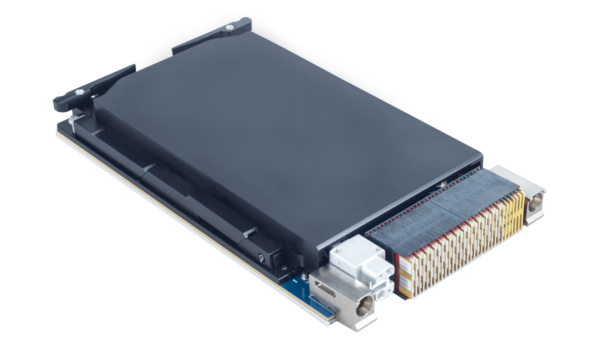

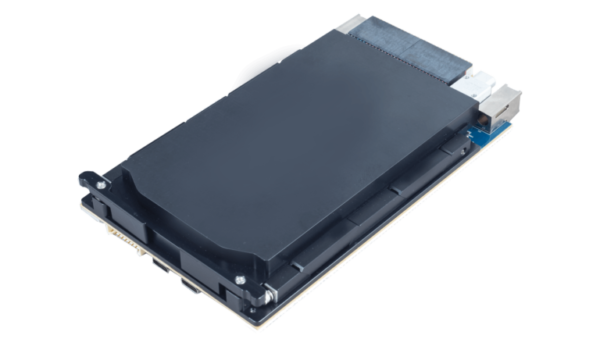

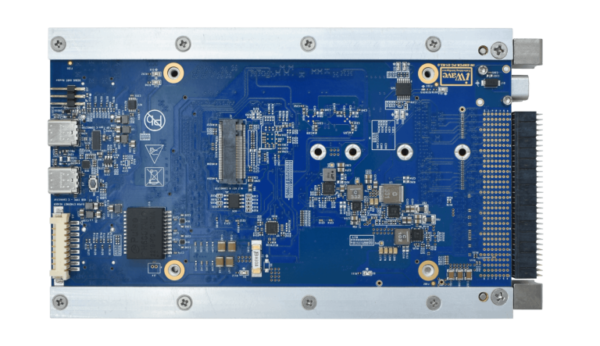

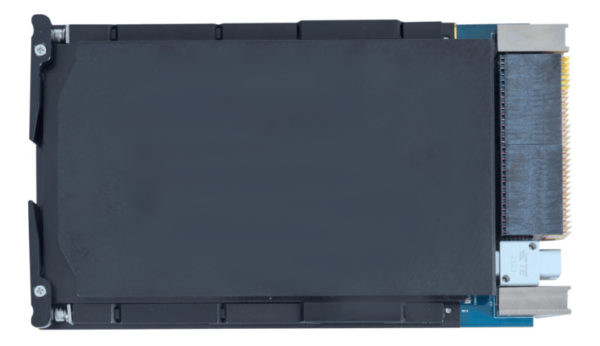

iWave iW-RainboW-G35V

AMD Xilinx’s ZU19/17/11EG Zynq Ultrascale+ MPSoC
64bit, 8GB PS DDR4 RAM with ECC (Upgradable)
Dual 64 bit, 8GB PL DDR4 RAM (Upgradable)
8GB eMMC Flash (Upgradable)
3U VPX Connectors based on ANSI/VITA 46.30 (P0+P1A & P1B+P2A)
8 Optical transceivers through MT Ferrule Connector (P2B) based on VITA66.4

Description

Karta katalogowa Manual

On-Board Features

ZU19/ZU17/ZU11 – Zynq Ultrascale+ MPSoC	Processing Unit (PS) Quad/Dual Arm Cortex-A53 @1.5GHz, Dual Cortex-R5 @600MHz Arm Mali-400MP2 GPU @677MHz Programming Logic (PL/FPGA) Up to 1143K Logic cells & 522K LUTs
RAM Memory	PS: 64bit, 8GB DDR4 RAM with ECC PL/FPGA : Dual 64bit, 8GB DDR4 RAM (Expandable up to 16GB)
On Board Flash	8GB eMMC Flash for Boot & Storage (Expandable up to 128GB)

ZU19/ZU17/ZU11 – Zynq Ultrascale+ MPSoC

Processing Unit (PS)

Quad/Dual Arm Cortex-A53 @1.5GHz, Dual Cortex-R5 @600MHz
Arm Mali-400MP2 GPU @677MHz

Programming Logic (PL/FPGA)

Up to 1143K Logic cells & 522K LUTs

RAM Memory

PS: 64bit, 8GB DDR4 RAM with ECC

PL/FPGA : Dual 64bit, 8GB DDR4 RAM (Expandable up to 16GB)

On Board Flash

8GB eMMC Flash for Boot & Storage (Expandable up to 128GB)

3U VPX Backplane Features

3U VPX Connector (P0+P1A)	Data Plane Port DS01[3:0] – 1G/2.5G/10G Ethernet or PCIe Gen3 (Using GTH Transceivers @Up to 16Gbps/Lane) Data Switch Port DP01[3:0] – 1G/2.5G/10G Ethernet or PCIe Gen3 (Using GTH Transceivers @ Up to 16Gbps/Lane) Utility Plane System Control Signals (SYSRESET, NVMRO, SYS_CON, SM Bus, Geographic Address Field, JTAG) System Reference Clocks (REF_CLK, AUX_CLK) Bussed GPIO (GDiscrete1) Power Input (12V VDC, 3.3V_AUX, VBAT)
3U VPX Connector (P1B+P2A)	Data Plane Port DP02[3:0] – 1G/2.5G/10G Ethernet (using GTH Transceivers @ Upto 16Gbps/lane) DP03[3:0] – 1G/2.5G/10G Ethernet (using GTH Transceivers @ Upto 16Gbps/lane) Control Plane Port CPutp[6:1] – 1G/2.5G/10G/25G Ethernet (using GTY Transceivers @ Upto 25Gbps/lane) CSutp01 – 1G/2.5G/10G/25G Ethernet (using GTY Transceivers @ Upto 25Gbps/lane) Utility Port System Control Signals (Maskable Reset) Maintenance Port MP01 and MP02
MT Ferrule Optical Connector (P2B)	8 Fiber Optical Transceiver using two Firefly Connector (using GTY Transceivers @ Upto 28.125Gbps)

3U VPX Connector (P0+P1A)

Data Plane Port
- DS01[3:0] – 1G/2.5G/10G Ethernet or PCIe Gen3 (Using GTH Transceivers @Up to 16Gbps/Lane)
Data Switch Port
- DP01[3:0] – 1G/2.5G/10G Ethernet or PCIe Gen3 (Using GTH Transceivers @ Up to 16Gbps/Lane)
Utility Plane
- System Control Signals (SYSRESET, NVMRO, SYS_CON, SM Bus, Geographic Address Field, JTAG)
- System Reference Clocks (REF_CLK, AUX_CLK)
- Bussed GPIO (GDiscrete1)
- Power Input (12V VDC, 3.3V_AUX, VBAT)

3U VPX Connector (P1B+P2A)

Data Plane Port
- DP02[3:0] – 1G/2.5G/10G Ethernet (using GTH Transceivers @ Upto 16Gbps/lane)
- DP03[3:0] – 1G/2.5G/10G Ethernet (using GTH Transceivers @ Upto 16Gbps/lane)
Control Plane Port
- CPutp[6:1] – 1G/2.5G/10G/25G Ethernet (using GTY Transceivers @ Upto 25Gbps/lane)
- CSutp01 – 1G/2.5G/10G/25G Ethernet (using GTY Transceivers @ Upto 25Gbps/lane)
Utility Port
- System Control Signals (Maskable Reset)
Maintenance Port
- MP01 and MP02

MT Ferrule Optical Connector (P2B)

8 Fiber Optical Transceiver using two Firefly Connector (using GTY Transceivers @ Upto 28.125Gbps)

3U VPX Front Panel Features

USB3.0 & USB 2.0 through USB Type-C Connector x 1
3-Pin Debug UART Header x 1
4K Display Port through USB Type-C Connector x 1
10/100/1000Mbps Ethernet through 9 Pin Header x 1

Other On-Board Features

PCIe Gen2 x 1 through M.2(Key-M) Connector x 1
Temperature Sensor
Elapse Time Counter
Quad User LEDs
Reset Switch
Clock Synthesizer and Clock Buffers for GTY, GTH, and GTR Transceiver Reference clocks

General Specification

Module Profile	MOD3-SWH-4F1U7U1J-16.8.7-n
Slot Profile	SLT3-SWH-4F1U7U1J-14.8.7-n
Slot Pitch	1 Inch Conduction Cooled
Power Supply	+12VDC +/- 5% input from VPX Connector
Form Factor	3U VPX (160mm X 100mm)
