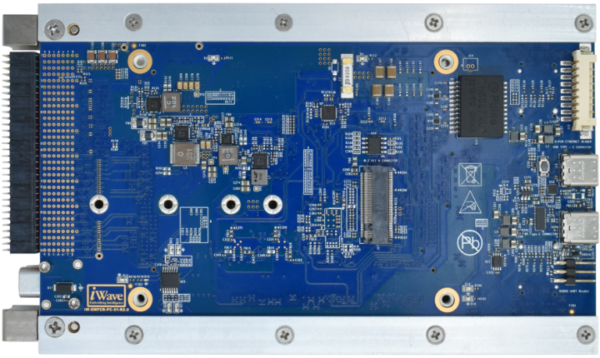

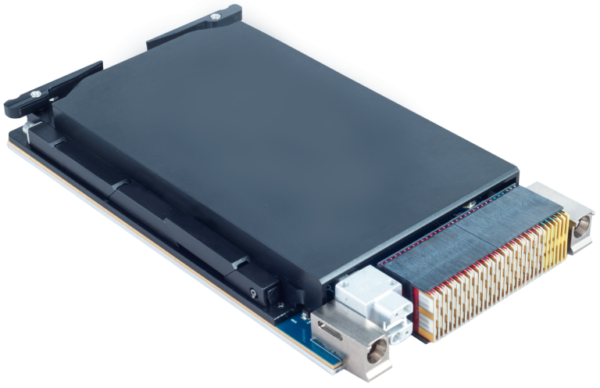

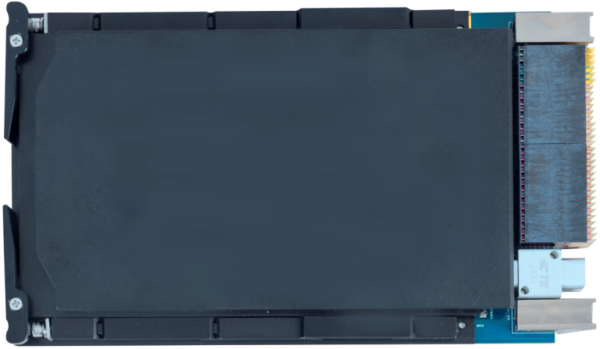

iW-RainboW-G47V

Komputer modułowy iW-RainboW-G47V

iW-RainboW-G47V

  • AMD Xilinx’s VU13P, VU11P, VU9P, VU7P, VU5P Virtex Ultrascale+ FPGA
  • Dual 64 bit, 4GB FPGA-DDR4 with ECC (Upgradable)
  • 31 channels of FPGA GTY transceivers up to 32.75Gbps1
  • Dual ARM Cortex-A7 core processor of 1.2GHz speed
  • 32bit 2GB DDR4 for CPU with ECC
  • 128MB QSPI Flash & 256MB NOR Flash
  • 3U VPX Connectors based on ANSI/VITA 46.30 (P0+P1A & P1B+P2A)
  • 8 Optical transceivers through MT Ferrule Connector (P2B) based on VITA66.4



SKU: iW-RainboW-G47V

Description

Karta katalogowa Manual

On-Board Features

Virtex UltraScale+ Compatible FPGAs

  • VU13P, VU11P, VU9P, VU7P, VU5P and Virtex UltraScale VU080, VU095, VU125, VU160, VU190

Programming Logic (FPGA)

  • Up to 3,780K Logic Cells & 1,728K LUTs
LS1021A – Arm CPU Arm® Cortex®-A7 MPCore compliant with Armv7-A™ architecture
Dual-core Cortex®-A7 Cores running up to 1.2GHz
RAM Memory PL/FPGA: Dual 64bit, 4GB DDR4 RAM (expandable up to 16GB)
Arm CPU: 32bit, 2GB DDR4 RAM with ECC
On Board Flash/Storage 16bit, 256MB NOR Flash
16bit, 4MB MRAM
512KB SRAM
FPGA to CPU Interface RGMII
UART
PCIe x1 Gen21

3U VPX Backplane Features

3U VPX Connector – P0+P1A
  • Data Plane Port
    • DP01[3:0] – 1G/2.5G/10G Ethernet or PCIe Gen4 (using PL GTY Transceivers @ Upto 16Gbps/lane)
  • Data Switch Port
    • DS01[3:0] – 1G/2.5G/10G Ethernet or PCIe Gen4 (using PL GTY Transceivers @ Upto 16Gbps/lane)
  • Utility Plane
    • System Control Signals (SYSRESET, NVMRO, SYS_CON, SM Bus, Geographic Address Field, JTAG)
    • System Reference Clocks (REF_CLK, AUX_CLK)
    • Bussed GPIO (GDiscrete1)
    • Power Input (12V VDC, 3.3V_AUX, VBAT)



3U VPX Connector – P1B+P2A
  • Data Plane Port
    • DP02[3:0] – 1G/2.5G/10G Ethernet (using GTY Transceivers @ Upto 16Gbps/lane)
    • DP03[3:0] – 1G/2.5G/10G Ethernet (using GTY Transceivers @ Upto 16Gbps/lane)
  • Control Plane Port
    • CPutp[6:0] – 1G/2.5G/10G/25G Ethernet (using GTY Transceivers @ Upto 25Gbps/lane)
    • CSutp01 – 1G/2.5G/10G/25G Ethernet (using GTY Transceivers @ Upto 25Gbps/lane)
  • Utility Port
    • System Control Signals (Maskable Reset)
  • Maintenance Port
    • MP01 and MP02



MT Ferrule Optical Connector – P2B
  • 8 Fiber Optical Transceiver using two Firefly Connector (using GTY Transceivers @ Upto 28.125Gbps)1

3U VPX Front Panel Features

  • USB3.0 & USB 2.0 through USB Type-C Connector x 1
  • 10/100/1000Mbps Ethernet through 9 Pin Header x 1
  • 3 Pin Debug UART Header x 1

Other On-Board Features

  • PCIe Gen2 x 1 through M.2(Key-M) Connector x 1
  • Temperature Sensor
  • Elapse Time Counter
  • Quad User LEDs
  • Reset Switch
  • Clock Synthesizer and Clock Buffers for GTY Transceiver Reference clocks

General Specification

Slot Pitch 1 Inch Conduction Cooled
Power Supply +12VDC +/- 5% input from VPX Connector
Form Factor 3U VPX (160mm X 100mm)

1 By default one GTY transceiver channel is connected with on-SOM PCIe transceiver.
