iWave iW-RainboW-G50S i.MX 93 Pico ITX SBC

iWave iW-RainboW-G50S i.MX 93 Pico ITX SBC

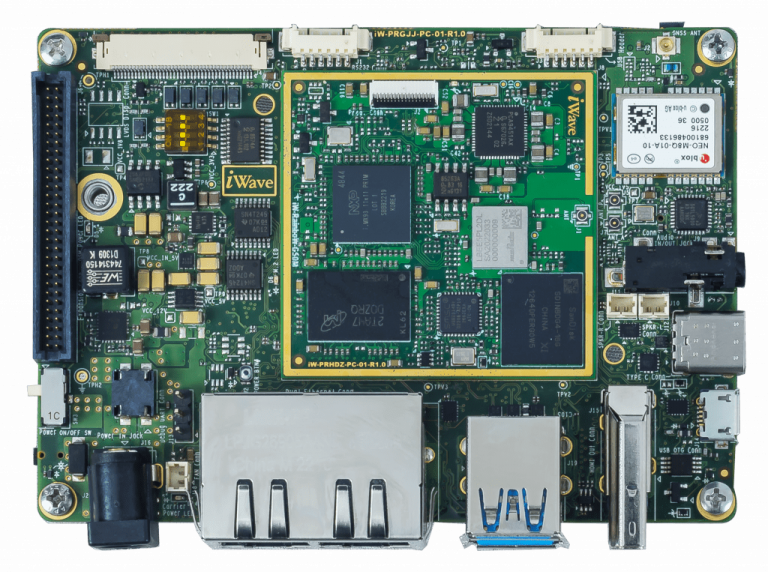

i.MX-93-SBC_TopView-1024x763-min-768x572

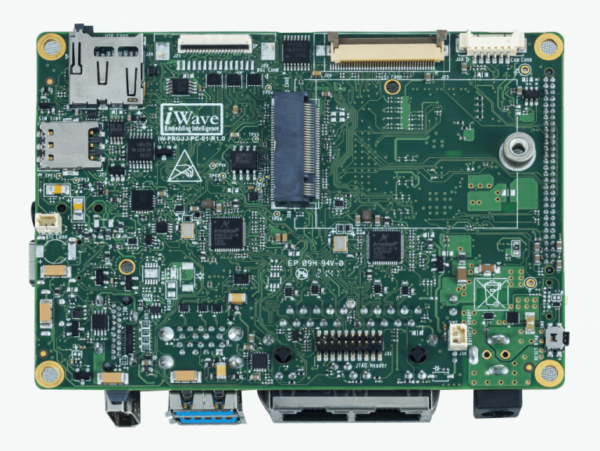

i.MX-93-SBC_BottomView-e1670497495970-1024x769-min-768x577

iWave iW-RainboW-G50S i.MX 93 Pico ITX SBC

i.MX 93 CPU with 64-bit ARM v8.2-A Architecture
2GB LPDDR4/4X memory and 16GB eMMC Flash
NPU with up to 0.5 TOP/s Neural Network performance
Wi-Fi 6, Bluetooth 5.3 & IEEE802.15.4 connectivity
Supports Dual Cortex-A55 cores
Supports 2 × Gigabit Ethernet
10+ years of Product Longevity Program

SKU: iWave iW-RainboW-G50S i.MX 93 Pico ITX SBC

Opis

Description

Karta katalogowa Manual

Features

CPU	i.MX 9352: 2 x Cortex-A55, NPU i.MX 9351: 1 x Cortex-A55, NPU i.MX 9332: 2 x Cortex-A55 i.MX 9331: 1 x Cortex-A55
Memory & Storage	2GB LPDDR4/4x(By default, LPDDR4X is supported) Micro SD 16Mb SPI Flash 16GB eMMC Flash expandable up to 128GB

Network & Communication

Wi-Fi 6, Bluetooth 5.3 & IEEE802.15.4
Gigabit Ethernet x 2 (Dual RJ45 Mag-jack Connector)
CAN Header x 1
USB 2.0 OTG (micro AB Receptacle Connector)
USB 2.0 x 2 (Dual-stack Type-A Connector)
USB Header x 1
Micro SD
RS232 Header x 1
GNSS receiver Module -GPS/GLONASS/Galileo/BeiDou

Audio/Video Features

3.5mm Audio IN/OUT Jack
Speaker Out Header
4 Lane LVDS Display Connector
4 Lane MIPI DSI Display Connector x 1
2 Lane MIPI DSI Display Connector (Optional) x 1
MIPI CSI Camera Connector x 1

Miscellaneous Interfaces

Debug UART Connector
RTC Connector
JTAG Header
M.2 Connector Key B
- USB 2.0 x 1

Expansion Connector Features

UART x 1 (Optional)
CAN x 1 Port
ADC x 2 (Optional)
PWM x 1
Tamper x 2

OS Support

Linux 6.1.22
QNX 7.1

General Features

Power Input	7V to 24V (By defualt, 12V)
Form Factor	100mm X 72mm
Operating Temperature	-40°C to +85°C (Industrial)
Environment Specification	REACH & RoHS3 Compliant

OSM LGA MODULE

i.MX 93 CPU with 64-bit ARM v8.2-A Architecture
NPU with up to 0.5 TOP/s Neural Network performance
IEEE 802.11b/g/n/ac/ax Wi-Fi & Bluetooth 5.2
Supports Dual Cortex-A55 cores
Supports 2 × 1Gbps Ethernet
10+ years of Product Longevity Program
OSM v1.1 Size-L LGA module
