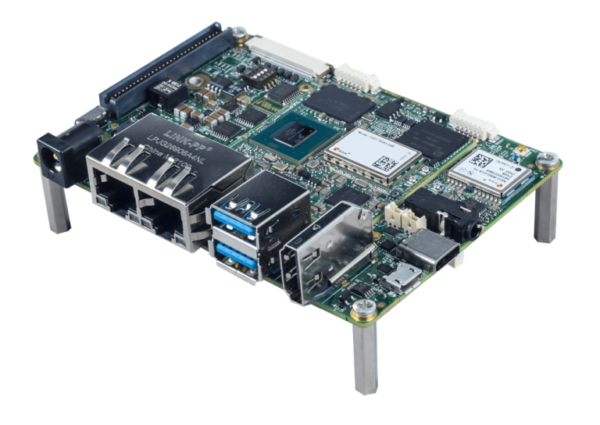

iWave iW-RainboW-G40S i.MX 8M Plus Pico ITX SBC

iWave iW-RainboW-G40S i.MX 8M Plus Pico ITX SBC

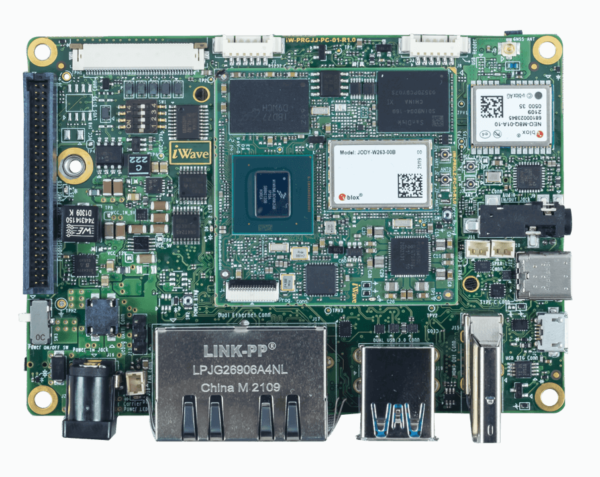

i.MX-8M-Plus-Pico-ITX-SBC_Top

Block-diagram_i.MX-8M-Plus-SBC-768x460

iWave iW-RainboW-G40S i.MX 8M Plus Pico ITX SBC

i.MX 8M Plus Q/QL/D CPU with Arm Cortex-A53 & Arm Cortex-M7
NPU with up to 2.3 TOP/s Neural Network performance
2GB LPDDR4 expandable up to 8GB and 16GB eMMC Flash
Multi-OS Platform Support
10+ years of Product Longevity Program
IEEE 802.11a/b/g/n/ac/ax* Wi-Fi & Bluetooth 5.0(ax is optional)
Dual 1000/100/10 Mbps Ethernet

SKU: iWave iW-RainboW-G40S i.MX 8M Plus Pico ITX SBC

Opis

Description

Karta katalogowa Manual

Features

CPU	i.MX 8M Plus Quad : 4 x Cortex-A53, 1 x Cortex-M7, GPU, VPU i.MX 8M Plus Quad Lite : 4 x Cortex-A53, 1 x Cortex-M7 & GPU i .MX 8M Plus Dual : 2 x Cortex-A53, 1 x Cortex-M7, GPU, VPU
Memory & Storage	2GB LPDDR4 expandable up to 8GB 16GB eMMC Flash expandable up to 256GB Micro SD slot 16Mb SPI Flash

Network & Communication

Gigabit Ethernet x2 (Dual RJ45 Mag-jack Connector)
USB 3.0 x2 (Dual-stack Type-A Connector)
USB 2.0 OTG (micro AB Receptacle Connector)
IEEE 802.11 a/b/g/n/ac/ax Wi-Fi & BT 5.0 (ax is optional)
GNSS receiver Modul -GPS/GLONASS/Galileo/BeiDou
RS232 Header x 1
USB Header x 1
CAN Header x 1
TypeC OTG

Audio/Video Features

HDMI Output through HDMI (Type A)
LVDS Display Connector x 1
3.5mm Audio IN/OUT Jack
Speaker Out Header
5.5inch MIPI DSI Display
2 Lane MIPI DSI Display (Optional)
MIPI CSI Camera Connector

Miscellaneous Interfaces

Debug UART Connector
RTC Battery Connector
JTAG Header
M.2 Key B Connector
- PCIe 3.0 ×1
- USB 2.0 x 1
- Nano SIM Connector

Expansion Connector Features

4 lane LVDS x 1 Channel
UART x 1
8 bit SD (optional)
SPI x 1 Port
PWM x 1
CAN x 1 Port

OS Support

Linux 5.4.70 (or higher)
Android 11 (or higher)
Ubuntu 22.04 (or higher)

General Features

Power Input	7V to 24V (By defualt, 12V)
Form Factor	100mm x 72mm
Operating Temperature	-40°C to +85°C
Environment Specification	REACH & RoHS3 Compliant

Note: Optional features are not supported in default configuration.

OSM LGA MODULE

i.MX 8M Plus Q/QL/D SoC with 64-bit ARMv8-A Architecture
NPU with up to 2.3 TOP/s Neural Network performance
IEEE 802.11a/b/g/n/ac Wi-Fi & Bluetooth 5.0.
Excels in ML vision, edge intelligence & advanced multimedia applications.
Dual or Quad-core ARM Cortex-A53 up to 1.8GHz & M7 at 800MHz
10+ years of Product Longevity Program
OSM v1.0 Size L LGA Module
