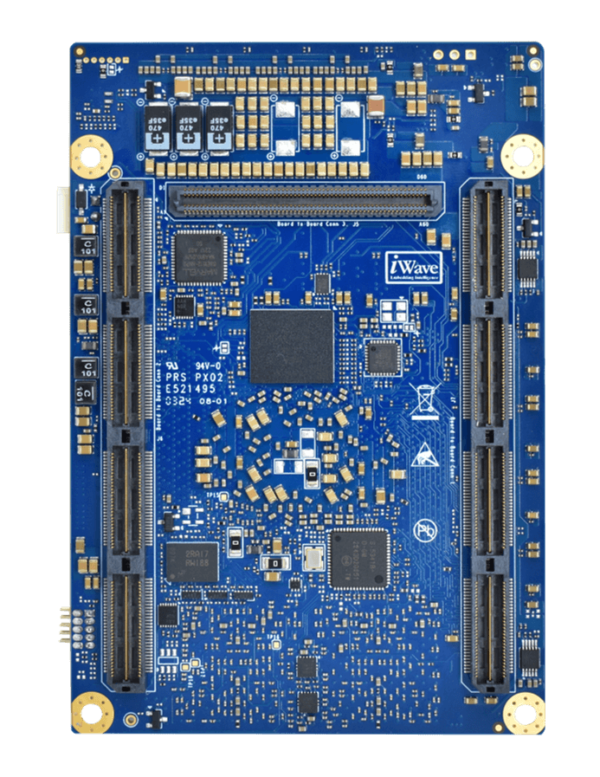

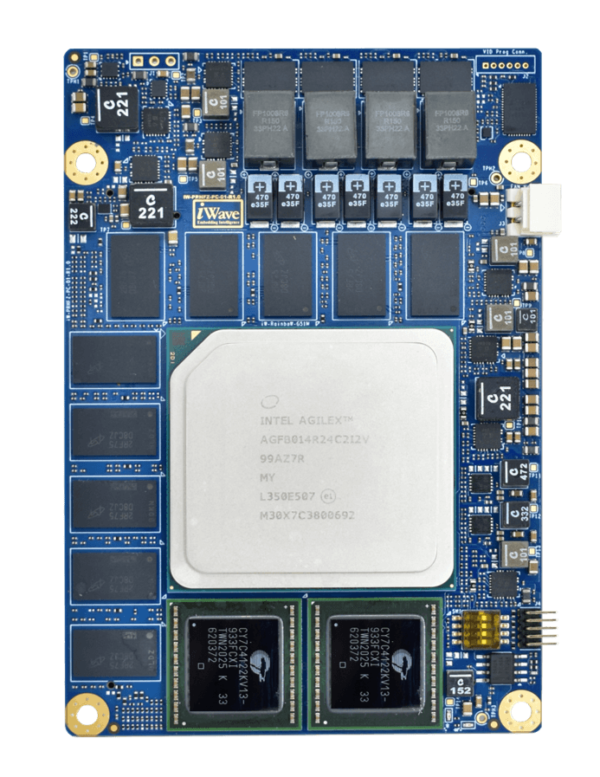

iWave iW-RainboW-G51M Agilex 7 R24C SoC FPGA SOM

iWave iW-RainboW-G51M Agilex 7 R24C SoC FPGA SOM

iWave iW-RainboW-G51M Agilex 7 R24C SoC FPGA SOM

  • Quad ARM Cortex A53 Processor
  • R24C Package With 2 x F-Tile
  • 32GB eMMC (Expandable)
  • 8GB DDR4 with ECC for HPS (64bit + 8bit)
  • 8GB DDR4 with ECC for FPGA (64bit + 8bit)
  • 2 x 144Mb QDR-IV For FPGA (18bit)
  • 32 x FGT transceivers up to 58Gbps
  • FPGA IOs(75LVDS/150SE)
  • 10+ Years long term support

SKU: iWave iW-RainboW-G51M Agilex 7 R24C SoC FPGA SOM

Description

Karta katalogowa Manual

On module Feature

Agilex 7 R24C SoC FPGA
  • Compatible Agilex 7-Series – Agilex AGF 006, AG 008, AGF 012, AGF 014, AGF 019, AGF 023, AGF 022, AGF 027
  • Hard Processing System (HPS)
    • Quad-core 64-bit Arm Cortex-A53 up to 1.50 GHz
  • Field Programmable Gate Array (FPGA)
    • Up to 2,692,760 Logic elements
    • 32 x FGT transceivers up to 58Gbps
  • 8GB DDR4 with ECC for HPS (64bit + 8bit)
  • 8GB DDR4 with ECC for FPGA (64bit + 8bit)
  • 2 x 144Mb QDR-IV For FPGA (18bit)
  • 32GB eMMC (Expandable)
  • SGMII Ethernet PHY Transceiver
  • USB2.0 ULPI Transceiver

Board to Board Connectors Interfaces

From HPS (Hard Processor System)
  • USB2.0 OTG x 1 (through On-SOM USB2.0 transceiver)
  • RGMII x 1
  • Debug UART x 1
  • SD x 1 (Optional)
  • I2C x 1
  • Data UART x 1
From SDM (Secure Device Manager)
  • JTAG x 1
  • AS x 1 (Active Serial x4)
From HPS to FPGA
  • Gigabit Ethernet x 1 (through On-SOM Gigabit Ethernet PHY)
From FPGA
  • 32 x FGT transceivers up to 58Gbps
  • FPGA IOs (Up to 75LVDS/150SE)

General Features

Power Input 5V through B2B Connector
Operating Temperature -40°C to +85°C
Form Factor 110mm X 75mm
BSP Support Linux BSP for ARM Cortex CPU
Environment Specification RoHS & REACH Compliant

DEVELOPMENT KIT

  • QSFP28/QSFP+ Connector
  • SFP+ Connector
  • 12G SDI Video IN through HD BNC Connector
  • 12G SDI Video OUT through HD BNC Connector
  • 4K HDMI 2.0 IN through HDMI Connector
  • 4K HDMI 2.0 OUT through HDMI Connector
  • FMC High Pin Count (HPC) Connector
  • FMC+ High Pin Count (HPC) Connector
  • Dual Gigabit Ethernet through RJ45MagJack
  • USB2.0 OTG through MicroAB Connector
  • Standard SD Connector (Optional)
  • 20 Pin Header (for HPS IOs)
  • Dual PMOD Connector
  • RTC Coil Cell holder
  • Operating Temperature: -20°C to +85°C
  • Form Factor : 140mm x 170mm
