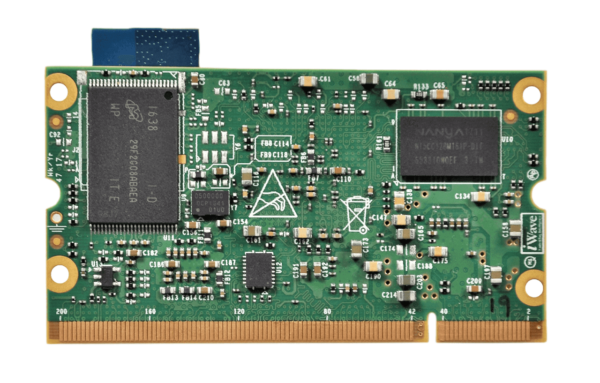

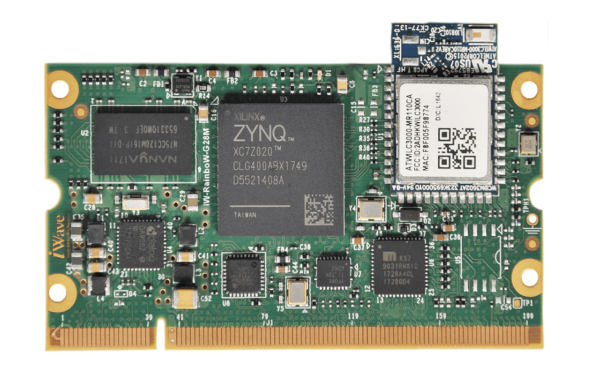

iWave iW-RainboW-G28M Zynq 7000 SODIMM SOM

iWave iW-RainboW-G28M Zynq 7000 SODIMM SOM

iWave iW-RainboW-G28M Zynq 7000 SODIMM SOM

iWave iW-RainboW-G28M Zynq 7000 SODIMM SOM

iWave iW-RainboW-G28M Zynq 7000 SODIMM SOM

Xilinx’s Zynq 7000 SoC with CLG400 Package
Compatible Zynq 7000 SoC – 7007S, Z-7014S, Z-7010, Z-7020
512MB DDR3 RAM Expandable up to 1GB and 8GB eMMC
200pin SODIMM Edge Connector
Up to 120 FPGA IOs
Wi-Fi & Bluetooth Connectivity
Industrial grade availability
10+ Years Longevity

SKU: iWave iW-RainboW-G28M Zynq 7000 SODIMM SOM

Opis

Description

Karta katalogowa Manual

On Module Features:

Compatible Zynq 7000 SoC – 7007S, Z-7014S, Z-7010, Z-7020
- Single/Dual Arm Cortex-A9 @866MHz
- Up to 85K Logic cells
512MB DDR3 RAM expandable up to 1GB
8GB eMMC Flash (Upgradable)
Micro SD (Optional)
2MB QSPI Boot Flash
RGMII Ethernet PHY Transceiver
USB2.0 ULPI Transceiver
WiFi & BT Combo Module

SODIMM Edge Connector Interfaces:

From PS Block

Gigabit Ethernet x 1
USB2.0 OTG x 1
Debug UART x 1
I2C x 1
JTAG
SD (4bit) x 1 (Optional)

From PL Block

60LVDS/120SE FPGA IOs

Up to 10 Clock Capable LVDS/SE pins
Up to 16 12bit 1Mbps Analog Input channels

General Features:

Power Input	3.3V through SODIMM Edge
Operating Temperature	-40°C to +85°C
Form Factor	67.6mm x 37mm
BSP Support	Linux BSP:- Petalinux/Vivado 2020.2
Environment Specification	RoHS & REACH Compliant
Compliance	CE*

* Under Progress

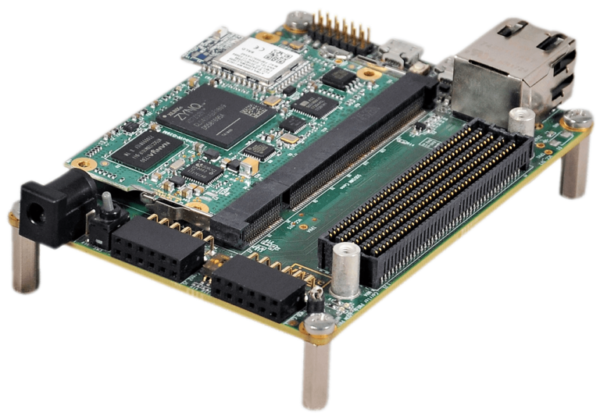

DEVELOPMENT KIT

Gigabit Ethernet through RJ45MagJack
USB2.0 OTG through MicroAB Connector
Standard SD Connector
FMC High Pin Count (HPC) Connector with Upto 98 Single ended (SE) IOs/39 LVDS IOs
Dual PMOD Connector
JTAG Connector
Debug UART through USB MicroAB Connector
RTC Coin Cell Holder
Operating Temperature: -20°C to +85°C
Form Factor : 100mm x 72mm
