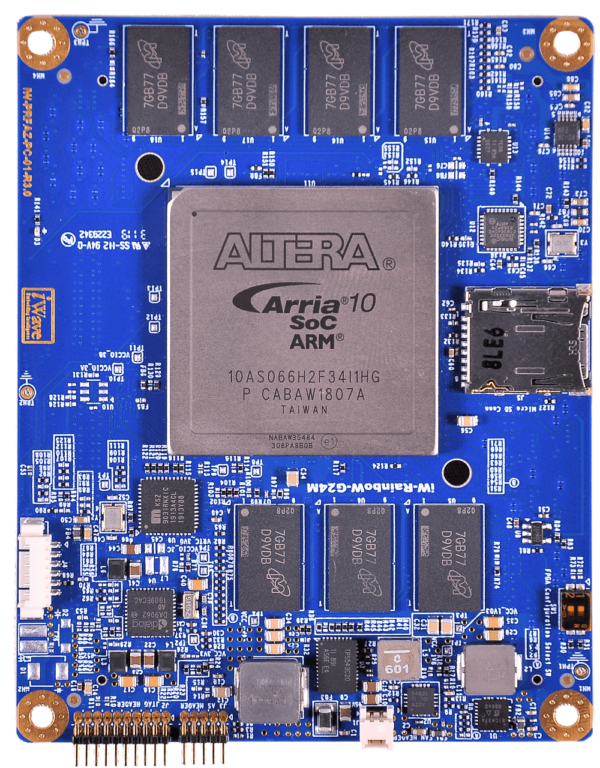

iWave iW-RainboW-G24M Arria 10 SoC FPGA SOM

Intel’s Arria 10 SoC & FPGA compatibility SX270, SX320, SX480, SX570, SX660 GX270, GX320, GX480, GX570, GX660, GX900, GX1150
32bit, 4GBHPS DDR4 with ECC &64bit, 8GBFPGA DDR4
Two 240pin High Speed Connectors with210User IOs
24 Channels High Speed Transceivers upto 17.4Gbps
Industrial grade availability
10+ Years Longevity

Description

Karta katalogowa Manual

On Module Feature:

Compatible Arria10 SoC Family – SX270, SX320, SX480, SX570, SX660
- Dual Core ARM Cortex A9 @ upto 1.5 GHz/Core Hard Processor System
- Up to 660K Logic elements
- High Speed Transceivers x 24 @ 17.4 Gbps

Compatible Arria10 FPGA Family – GX270, GX320, GX480, GX570, GX660, GX900, GX1150
- Up to 1150K Logic elements
- High Speed Transceivers x 24 @ 17.4 Gbps
32bit, 2GB DDR4 RAM with ECC for HPS(Upgradable upto 4GB)
64bit,4GB DDR4 RAM for FPGA(Upgradable upto 8GB)
8GB eMMC Flash(Upgradable)
RGMII Ethernet PHYTransceiver
ULPI Transceiver

Two 240pin High Speed Board to Board Connectors Interfaces

From HPS Block	Gigabit Ethernet x 1 (through On-SOM Gigabit Ethernet PHY) USB2.0 OTG x 1 (through On-SOM USB2.0 transceiver) SPI x 1 Debug UART x 1 I2C x 1 GPIOs x 14
From FPGA Block	FPGA High Speed Transceivers (upto17.4Gbps) x 24 FPGA IOs 91 LVDS IOs/189 Single ended (SE) 7 General Purpose Clock Input LVDS Pair/Single Ended 8 General Purpose Clock Output LVDS Pair/Single Ended

From HPS Block

Gigabit Ethernet x 1 (through On-SOM Gigabit Ethernet PHY)
USB2.0 OTG x 1 (through On-SOM USB2.0 transceiver)
SPI x 1
Debug UART x 1
I2C x 1
GPIOs x 14

From FPGA Block

FPGA High Speed Transceivers (upto17.4Gbps) x 24

FPGA IOs

91 LVDS IOs/189 Single ended (SE)
7 General Purpose Clock Input LVDS Pair/Single Ended
8 General Purpose Clock Output LVDS Pair/Single Ended

General Features:

Power Input	5V through B2B Connector
Operating Temperature	-40°C to +85°C
Form Factor	75mm x 95mm
BSP Support	Linux BSP:- Linux 5.4/Quartus 21.3
Environment Specification	RoHS &REACH Compliant
Compliance	CE*

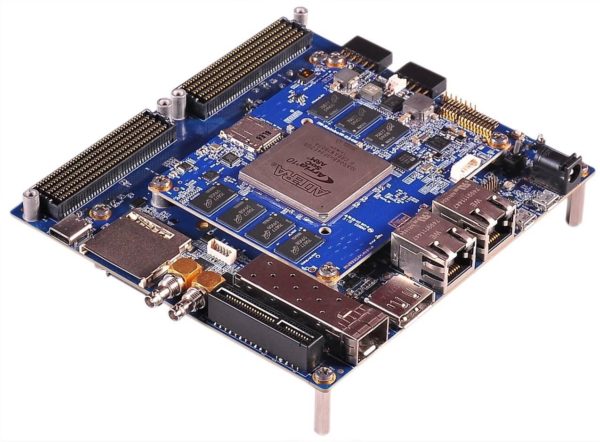

DEVELOPMENT KIT

10G Ethernet through SFP+ Connector
PCIe Gen3 x 1 Connector
Dual FMC High Pin Count (HPC) Connector
Gigabit Ethernet through RJ45MagJack
USB2.0 OTG through MicroAB Connector
Dual PMOD Connector
20 Pin Header (for PS IOs)
Debug UART through USB MicroAB Connector
RTC Coin Cell Holder
Operating Temperature: -20°C to +85°C
Form Factor: 130mm x 140mm
