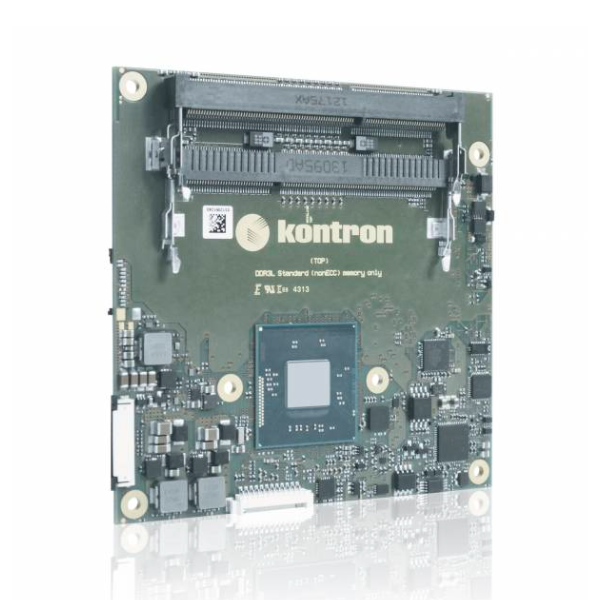

Standardowa konstrukcja kompaktowych modułów COM Express® – Kontron COMe-cBT6 – obsługuje całe portfolio procesorów Intel® Atom® E3800 (COMe-cBTi6) oraz Intel® Celeron® N2800/N2900 i J1900 (COMe-cBTc6), przy czym warianty E3800 są przeznaczone do rozszerzonego zakresu temperatur od -40°C do +85°C.
Pamięć do 2x 4 GB została rozplanowana jako dwukanałowa pamięć DDR3L SODIMM. Dzięki eMMC Flash, gniazdu kart SD i 2x SATA dostępne są liczne opcje przechowywania kodu systemu operacyjnego i aplikacji. Znacząca obsługa USB jest również oferowana z 1x USB 3.0 i do 8x USB 2.0.
FEATURES
| Compliance | COM Express® compact, Pin-out Type 6 |
| Dimensions (H x W x D) | 95 x 95 mm |
| CPU | COMe-cBTi6:
Intel® Atom® E3845 (4×1.91GHz, 10W) Intel® Atom® E3827 (2×1.75GHz, 8W) Intel® Atom® E3826 (2×1.46GHz, 7W) Intel® Atom® E3825 (2×1.33GHz, 6W) Intel® Atom® E3815 (1×1.46GHz, 5W) COMe-cBTc6: Intel® Celeron® J1900 (4×2.00GHz, 10W) Intel® Celeron® N2930 (4×1.83GHz, 7.5W) Intel® Celeron® N2807 (2×1.58GHz, 4.5W) Intel® Atom® E3815 (1×1.46GHz, 5W) |
| Chipset | Integrated SoC |
| Main Memory | 2x DDR3L-1066/1333 SODIMM up to 2x4GB |
| Graphics Controller | Intel® HD Graphics (Gen7) |
| Ethernet Controller | COMe-cBTi6: Intel® I210IT
COMe-cBTc6: Intel® I210AT (I211AT) |
| Ethernet | 10/100/1000 MBit Ethernet |
| Hard Disk | 2x SATA 3Gb/s |
| Flash Onboard | 2 – 64GB eMMC & 1x microSD Socket (with E3800 CPU only) |
| PCI Express / PCI support | 3x PCIe x1 |
| Panel signal | DDI1: DP++
DDI2: DP++ (shared w/LVDS) DDI3: – VGA: Yes LVDS: Dual Channel 18/24bit |
| USB | 1x USB 3.0 (incl. USB 2.0)
3x USB 2.0 from CPU 4x USB 2.0 from HSIC Hub (on COMe-cBTi6 only) |
| Serial | 2x serial interface (RX/TX only) |
| Audio | Intel® High Definition Audio |
| Common Features | SPI, LPC, SMB, Fast I²C, Staged Watchdog, RTC, MARS |
| BIOS | Phoenix Secure Core UEFI |
| Humidity | 93% relative Humidity at 40°C, non-condensing (according to IEC 60068-2-78) |
| Options | 1x PCIe x1 additional w/o onboard LAN
Trusted Platform Module TPM 1.2 eMMC Flash onboard (2-32GB SLC, 4-64GB MLC) AES-NI |
| Power Management | ACPI, S5 Eco |
| Power Supply | 4.75V – 20V Wide Range, Single Supply Power |
| Special Features | POSCAP capacitors
LVDS/DP Multiplexer |
| Operating System | Windows® 8, Windows® 7, WE8S, WES7, WEC7, Linux, VxWorks |
| Temperature | Commercial temperature (COMe-cBTc6):
# 0°C to +60°C operating, -30°C to +85°C non-operating Industrial temperature (COMe-cBTi6): # -40°C to +85°C operating, -40°C to +85°C non-operating |
| Supported Modules | 36015-xxxx-xx-x: COMe-cBTi6, industrial temperature
36017-xxxx-xx-x: COMe-cBTc6, commercial temperature |
VARIANTS
| COMe-cBTi6 E3845 16GB 36015-0016-19-4 |
 |
COM Express® compact pin-out type 6 Computer-on-Module with Intel® Atom® E3845 4×1.91GHz, 2xDDR3L-SODIMM, 16GB eMMC (MLC), TPM, mSD, i210IT LAN, USB Hub, industrial grade | |
| COMe-cBTi6 E3845 36015-0000-19-4 |
|
COM Express® compact pin-out type 6 Computer-on-Module with Intel® Atom® E3845 4×1.91GHz, 2xDDR3L-SODIMM, mSD, i210IT LAN, USB Hub, industrial grade | |
| COMe-cBTi6 E3827 36015-0000-17-2 |
|
COM Express® compact pin-out type 6 Computer-on-Module with Intel® Atom® E3827 2×1.75GHz, 2xDDR3L-SODIMM, mSD, i210IT LAN, USB Hub, industrial grade | |
| COMe-cBTi6 E3826 36015-0000-15-2 |
|
COM Express® compact pin-out type 6 Computer-on-Module with Intel® Atom® E3826 2×1.46GHz, 2xDDR3L-SODIMM, mSD, i210IT LAN, USB Hub, industrial grade | |
| COMe-cBTi6 E3825 36015-0000-13-2 |
|
COM Express® compact pin-out type 6 Computer-on-Module with Intel® Atom® E3825 2×1.33GHz, 1xDDR3L-SODIMM, mSD, i210IT LAN, USB Hub, industrial grade | |
| COMe-cBTi6 E3815 36015-0000-15-1 |
|
COM Express® compact pin-out type 6 Computer-on-Module with Intel® Atom® E3815 1×1.46GHz, 1xDDR3L-SODIMM, mSD, i210IT LAN, USB Hub, industrial grade | |
| COMe-cBTc6 J1900 36017-0000-20-4 |
|
COM Express® compact pin-out type 6 Computer-on-Module with Intel® Celeron J1900 4×2.00GHz, 2xDDR3L-SODIMM, i211AT LAN, commercial grade | |
| COMe-cBTc6 N2930 36017-0000-18-4 |
|
COM Express® compact pin-out type 6 Computer-on-Module with Intel® Celeron N2930 4×1.83GHz, 2xDDR3L-SODIMM, i211AT LAN, commercial grade | |
| COMe-cBTc6 N2807 36017-0000-16-2 |
|
COM Express® compact pin-out type 6 Computer-on-Module with Intel® Celeron N2807 2×1.58GHz, 1xDDR3L-SODIMM, i211AT LAN, commercial grade | |
| COMe-cBTc6 E3815 36017-0000-15-1 |
|
COM Express® compact pin-out type 6 Computer-on-Module with Intel® Atom® E3815 1×1.46GHz,1xDDR3L-SODIMM, mSD, i211AT LAN, commercial grade |
ACCESSORIES
| COMe Eval Carrier2 T6 38116-0000-00-5 |
 |
COM Express® Eval Carrier2 Type 6 with 5mm COMe connector | more |
| COMe Ref.Carrier T6 38114-0000-00-0 |
 |
COM Express® Reference Carrier Type 6 | more |
| HSP COMe-cBT6 thread 36015-0000-99-0 |
|
Heatspreader for COMe-cBT6, threaded mounting holes | |
| HSP COMe-cBT6 through 36015-0000-99-1 |
|
Heatspreader for COMe-cBT6, through holes | |
| COMe Active Uni Cooler (w/o HSP) 36099-0000-99-0 |
|
COM Express® Universal Active Cooler for Heatspreader Mounting (87x78x14.3mm) (for CPU’s <20W) | |
| COMe Passive Uni Cooler (w/o HSP) 36099-0000-99-1 |
|
COM Express® Universal Passive Cooler for Heatspreader Mounting (87x78x14.3mm) (for CPU’s <10W) | |
| KAB-HSP 200mm 96079-0000-00-0 |
|
Fan cable adapter for 3pin standard FAN connector to 3pin molex connector, cable length 200mm | |
| KAB-HSP 40mm 96079-0000-00-2 |
|
Fan cable adapter for 3pin standard FAN connector to 3pin molex connector, cable length 40mm | |
| COMe Mount Kit 5mm 1set 38017-0000-00-5 |
|
COM Express® Mounting Kit 5mm 1set for threaded HSP and Cooling Solutions | |
| COMe Mount Kit 5mm 100sets 38017-0100-00-5 |
|
COM Express® Mounting Kit 5mm 100 sets | |
| COMe Mount KIT 8mm 1set 38017-0000-00-0 |
|
COM Express® Mounting Kit 8mm 1set for threaded HSP and Cooling Solutions | |
| COMe Mount Kit 8mm 100sets 38017-0100-00-0 |
|
COM Express® Mounting Kit 8mm 100sets | |
| DDR3L-1333 SODIMM 2GB_COM 97015-2048-13-1 |
|
DDR3 SDRAM, 204pin, Speed= 667MHz / DDR3-1333 / PC3-106000 or higher | |
| DDR3L-1333 SODIMM 4GB_COM 97015-4096-13-1 |
|
DDR3 SDRAM, 204pin, Speed= 667MHz / DDR3-1333 / PC3-106000 or higher | |
| DDR3L-1333 SODIMM 2GB E2_COM 97015-2048-13-3 |
|
DDR3 SDRAM, 204pin, Speed= 667MHz / DDR3-1333 / PC3-10600 or higher, industrial temperature -40°C to +85° | |
| DDR3L-1333 SODIMM 4GB E2_COM 97015-4096-13-3 |
|
DDR3 SDRAM, 204pin, Speed= 667MHz / DDR3-1333 / PC3-10600 or higher, industrial temperature -40°C to +85° |
