Platforma dla procesorów AMD FP5 SoC

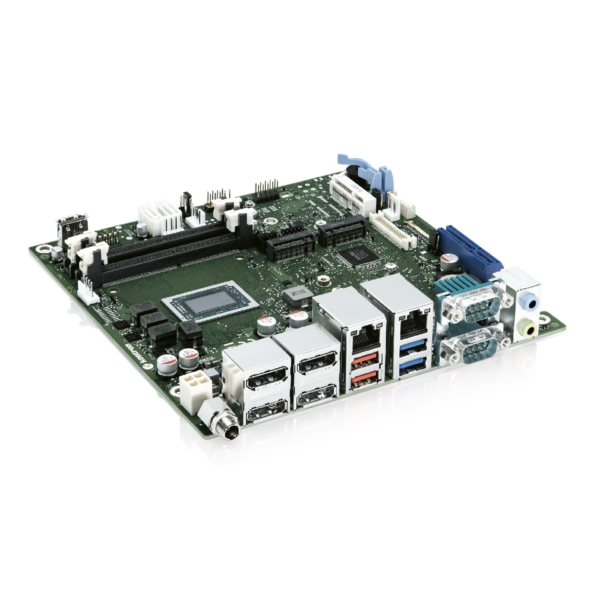

Przemysłowa płyta główna D3713-V / R mITX obsługuje procesory z serii AMD Ryzen ™ Embedded V1000 i R1000 ze zintegrowaną grafiką AMD Radeon ™ Vega i może być używana w aplikacjach o wysokich wymaganiach graficznych, takich jak gry kasynowe, monitory medyczne, cienkie klienty i komputery przemysłowe.
Jest wyposażona w maksymalnie cztery złącza DisplayPort, jeden wbudowany DisplayPort i jeden dwukanałowy LVDS (24-bitowy) i obsługuje do czterech niezależnych wyświetlaczy w rozdzielczości 4K. W zależności od wymaganej wydajności (graficznej) dostępnych jest 6 wersji płyt głównych z różnymi procesorami AMD.
FEATURES
| Processor | AMD Embedded V1202B SoC AMD Embedded V1605B SoC AMD Embedded V1807B SoC AMD Embedded R1102G SoC AMD Embedded R1305G SoC AMD Embedded R1606G SoC |
| Chipset | SoC |
| Main Memory | 2x DDR4 3200 SDRAM up to 32 Gbyte |
| Graphics Controller | Integrated AMD Radeon™ Vega Graphics |
| Display | Up to 4x DP V.1.4 (thereof 2x DP++) 1x embedded DP (eDP V1.4; supporting 4K resolutions) 1x Dual-Channel 24bit LVDSFollowing max. display combinations are supported: V-Series: 2x DP + 1x LVDS + 1x eDP, 3x DP + 1x LVDS or eDP, 4x DP R-Series: 1x DP + 1x LVDS + 1x eDP, 2x DP + 1x LVDS or eDP, 3x DP |
| Audio Controller | Realtek ALC256 |
| Audio | 5.1-channel, High Definition Audio Codec |
| Ethernet | Intel® i210LM with 10/100/1000 MBit/s |
| USB | 2x USB 2.0 (by header) 2x USB 3.1 Gen1 2x USB 3.1 Gen1 (by header) 2x USB 3.1 Gen2 |
| Serial | 1x RS232/422/485; 3x RS232 (2x by header) |
| Available I/Os | GPIO (by header) |
| SATA | 2x Serial ATA III 600 Interface (up to 6GBit/s), NCQ, AHCI |
| Expansion | 1x M.2 PCIe x2 (Key-M: 2230/2242/2280) 1x Mini PCIe (halfsize/fullsize) PCIe x4: 1x Gen3 1x M.2 PCIe x4 (Key B: 2242/2252/2260/2280) |
| Power connector | External/Internal DC-In 8-36 V (DC Jack/4-Pin) |
| Input Voltage | DC Input 8 V-36 V (max. 10 A /max. 125 W) |
| BIOS | AMI Aptio 5.x (UEFI) BIOS |
| Watchdog | 2 level HW Watchdog (BIOS Boot/OS) |
| Real Time Clock | Integrated |
| Cooling | 2x PWM fan (CPU/System) |
| Operating System | MS Windows 10 Linux-64 |
| Mechanical Dimensions | Mini-ITX: 6.7“ x 6.7“ (170 x 170 mm) |
| Operation Temperature | -10°C – 60°C |
| Humidity | 5%-85% |
| Certifications | CE Class-B (planned), FCC-B verified (planned) cTÜVus acc. IEC62368-1 (planned) |
VARIANTS
| D3713-V1 |
 |
AMD Embedded V1202B SoC; GPU @ 1.0 GHz (3x Compute Units; up to 4 displays) | |
| D3713-V2 |
|
AMD Embedded V1605B SoC; GPU @1.1 GHz (8x Compute Units; up to 4 displays) | |
| D3713-V4 |
|
AMD Embedded V1807B SoC; GPU @1.3 GHz (11x Compute Units; up to 4 displays) | |
| D3713-R2 |
|
AMD Embedded R1305G SoC; GPU @1.0 GHz (3x Compute Units; up to 3 displays) | |
| D3713-R4 |
|
AMD Embedded R1606G SoC; GPU @1.2 GHz (3x Compute Units; up to 3 displays) |
ACCESSORIES
| SMARTCASE™ S711 S26361-F5000-J008 |
 |
IPC mini-ITX Chassis incl. illuminated power button, 2x Front USB 3.1, HDD cage w. 4 pin PWM fan, SATA and drive power cable, stands (horizon./vert.), wall mount, Chassis intrusion, non branded! | |
| Passive Cooler AMD FP5 15W S26361-F5000-C019 |
 |
Passive cooler for Mini-ITX Ryzen Motherboard + Backplate for FP5 | |
| Active Cooler AMD FP5 54W S26361-F5000-C020 |
 |
Active cooler for Mini-ITX Ryzen Motherboard + Backplate for FP5 | |
| Active Cooler AMD FP5 35W S26361-F5000-C021 |
 |
Low height 35W active cooler for Mini-ITX Ryzen Motherboard + Backplate for FP5, suitable for SMARTCASE™ S711 chassis! | |
| Internal PSU for chassis Kit S26361-F5000-P004 |
 |
AC Adapter, 12V / 5.4A, 65W, low profile extension card format | |
| AC Adapter S26361-F5000-P006 |
 |
19V / 3.42A, 65W – w/o power cord | |
| DrivePowerCable S26361-F5000-K001 |
 |
Drive Power Cable for SATA HDD and SATA slimline DVD (length 200 + 200 mm) | |
| COM Cable short w/o bracket S26361-F5000-K007 |
 |
w/o slot bracket, length = 120mm; new 2mm pitch internal connector | |
| USB Typ-C Extension Cable S26361-F5000-K008 |
 |
USB3.1 gen1, length = 140mm; max. load 5V/800mA | |
| COM Cable “long” S26361-F5000-K010 |
 |
with fullsize slot bracket | |
| Risercard S26361-F5000-R006 |
 |
1 x PCIe x4 | |
| 4 x COM Extension Board S26361-F5000-R010 |
 |
provides 4x COM RS232 ports (incl. RS422/485- if application software is installed) | |
| Mini-PCIe to M.2 2230 Converter for WLAN/BT S26361-F5000-M003 |
 |
all Boards with fullsize Mini-PCIe socket | |
| M.2 2230 WLAN Module S26361-F5000-W003 |
 |
WLAN Module Intel 9260 NON VPRO only |
