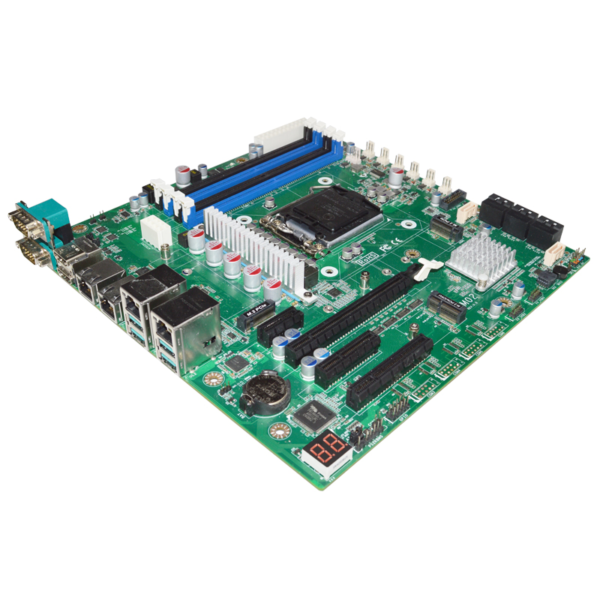

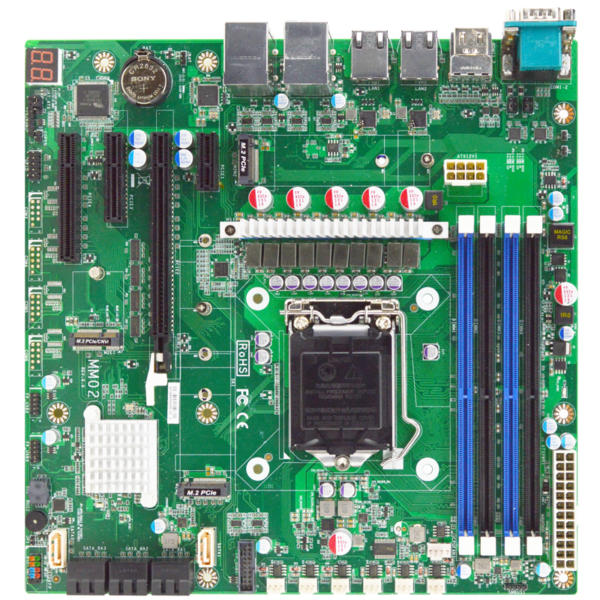

| Model | – MM02-20 – MM02-22 (TPM2.0)) |
| Form Factor | – Micro ATX (244 x 244 mm) |
| Processor System | – Intel® LGA1200 Socket supports 10th Gen. Core Processor (Max 95W) – Intel W480E chipset – AMI 128Mb Flash ROM BIOS |
| Expansion Slot | – 1* M.2 E-key, 2230 (PCIe x1 /USB2.0 interface) support CNVi – 1* PCIe x16 – 1* PCIe x8 (share with PCIe x16) – 1* PCIe x4 – 1* PCIe x1 |
| Memory | – 4* Long DIMM DDR4 2933/2666/2400 MHz DRAM up to 128GB support ECC |
| Graphics | – Intel® HD Graphics, shared memory – 2* HDMI 1.4 (Max Resolution: 4096×2160@30Hz) – Support Dual Displays |
| Ethernet | – 1* Intel® i219LM GbE & 1* Intel® i210AT GbE – 2* Intel® i225LM 2.5GbE |
| Storage | – 8* SATAIII (6.0Gb/s, support RAID 0/1/5/10)
– 2* M.2 (M-key): 1* 2242/2260/2280/22110 (PCIe x4 interface) support NVMe, 1* 2260/2280 (PCIe x2 interface) |

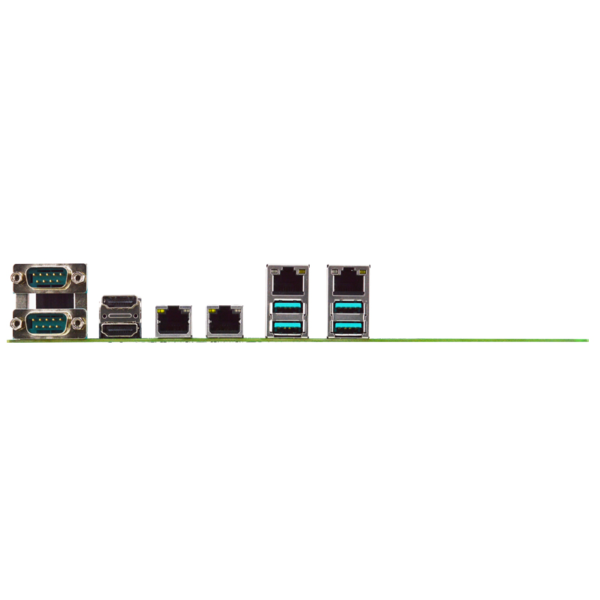

| Rear I/O | – 2* HDMI – 2* RJ45 (GbE) – 2* RJ45 (2.5GbE) – 4* USB3.2 (Gen.2) – 2* RS232 |
| Internal I/O | – 1* USB 3.2 (Gen.2) – 4* USB 2.0 – 8* SATAIII (support RAID 0/1/5/10) – 1* M.2 M-key 2242/2260/2280/22110 (PCIe x4 interface) support NVMe – 1* M.2 M-key 2260/2280 (PCIe x2 interface) – 1* M.2 E-key 2230 (PCIe x1 /USB2.0 interface) support CNVi – 1* GPIO (8-bit) – 1* Chassis intrusion – 1* SMBUS/I2C – 1* AT mode – 1* TPM2.0 (MM02-12 only) |
| Watchdog Timer | – From Super I/O to drag RESETCON# – 256 segments (10 ~ 255min) |
| Power | DC-IN 12V, AT/ATX Supported – AT: Directly PWR on as Power input ready – ATX: Press Button to PWR on after Power input ready |
| Compliance | – CE, FCC, RoHS, REACH |
| Temperature | – Operating: 0°C ~ 60°C – Storage: -20°C ~ 85°C – Humidity: 10% ~ 90% RH @40°C (non-condensing) |
| OS Support | – Windows 10, Linux |
| Warranty | – 2 Years Limited Warranty |
* Specifications subject to change without notice, not responsible for typographical errors. Does not include HDD or OS.
