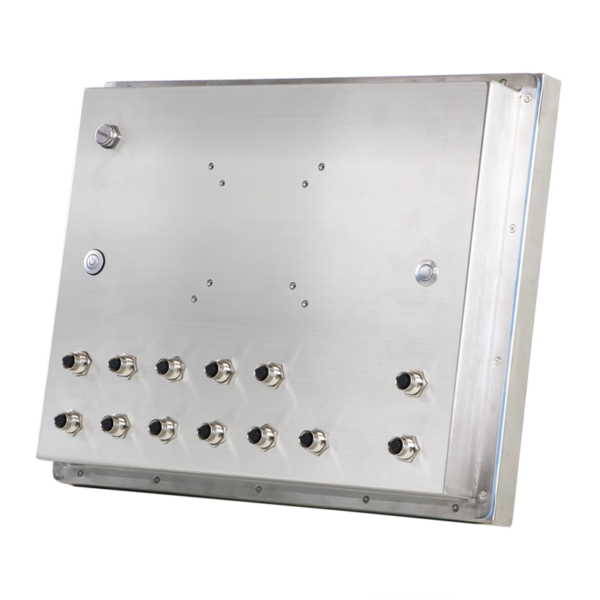

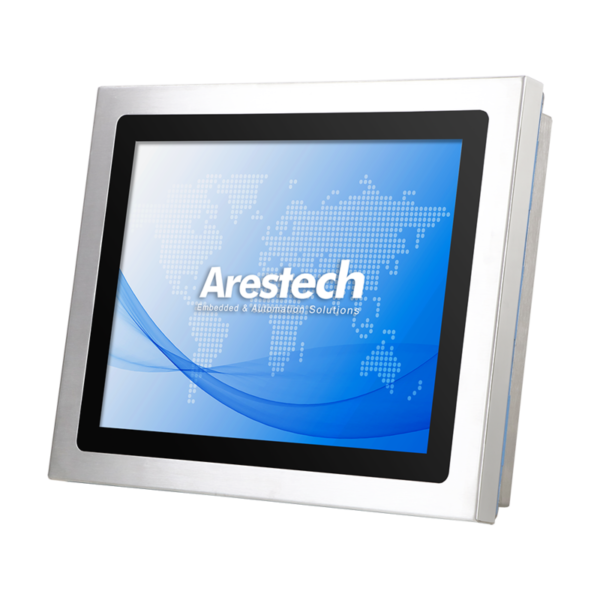

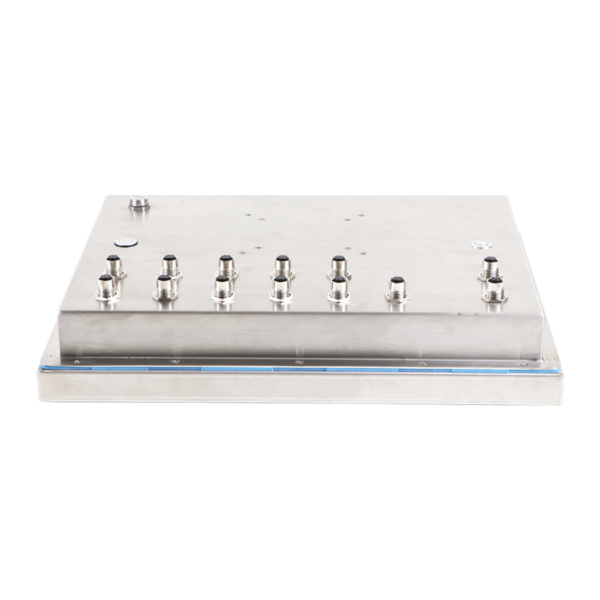

Wodoodporny komputer panelowy 15″ w obudowie ze stali nierdzewnej IP66 / 69K, z pojemnościowym ekranem dotykowym i procesorem Intel® Celeron™ J1900.
Przykładowe zastosowania/aplikacje:
Zakłady produkcji żywności i napojów
Usługi hotelarskie i cateringowe
Sprzęt farmaceutyczny i biofarmaceutyczny
Zakłady produkcji pasz dla zwierząt
Środowisko krytyczne pod względem chemicznym, gazowym i naftowym
| Processor System | CPU | Intel® Celeron™ Processor J1900 | ||
| Frequency | Quad-Core up to 2.0 GHz | |||
| L2 Cache | 2 MB | |||
| System Chipset | N/A | |||
| BIOS | UEFI | |||
| Memory | Technology | DDR3L 1333 MHz SDRAM | ||
| Max. Capacity | 8GB | |||
| SocketSocket/ (On Board) | 1 (204-pin SO-DIMM) | |||
| Display | Panel Size | 15” LCD Panel | ||
| Aspect Ratio | 4:3 | |||
| Resolution | 1024 x 768 (XGA) | |||
| Viewing Angle | 80 x 80 (H) x 80 x 80 (V) | |||
| Brightness | 300 (cd/m2) | |||
| Contrast Ratio | 600:1 | |||
| VGA / HDMI / DP / DVI | N/A | |||
| Multi Display | N/A | |||
| Touchscreen | Touchscreen Type | Projected Capacitive | ||
| Surface Hardness | 7 Mohs | |||
| Durability | N/A | |||
| Transparency | 90% (±3%) | |||
| I/O Interface | USB | 2, USB 2.0, M12 Connector | ||
| Serial Port | 10, COM (9 RS232, 1 RS232/422/485), M12 Connector | |||
| Digital I/O | N/A | |||
| Ethernet | 1 GbE, 10/100/1000 Mbps , M12 Connector | |||
| Others | N/A | |||
| Expansion | miniPCIe/ M.2 Slot | 1 Mini-PCIe (Half Size) + 1 Mini-PCIe(Full Size) shared with mSATA | ||
| PCI/ PCIe Slot | N/A | |||
| Audio | Connector | N/A | ||
| Storage | HDD/SSD | 1, Internal 2.5” HDD/SSD | ||
| mSATA/ M.2 / eMMC | 1 mSATA (Full Size) shared with SATA2 | |||
| Power | Power On Model | AT/ATX | ||
| Power Supply Voltage | 9~36 V DC input | |||
| Connector Type | M12 Connector | |||
| Power Consumption(Typical/Max.) | Typical: 1.2A @ 12 V (14.46W), Max: 2.25A @ 12 V (27W) | |||
| Battery | Lithium 3 V / 210 mAH | |||
| Mounting | VESA Mount | 75mmx 75mm; 100mm x 100mm | ||
| Panel Mount | N/A | |||
| Others | N/A | |||
| Environment | Operating Temperature | -20~60° C (-4~140°F) w/ 2.5” Extended Temperature RAM & SSD | ||
| Storage Temperature | -40~85° C (-40~185° F) | |||
| Humidity | 5~95% @ 40° C, non-condensing | |||
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |||
| Shock | 20 G, IEC 60068-2-27, half sine, 11 ms duration | |||
| General | Certification | TBD | ||
| Thermal Dissipation | Fanless | |||
| Material, Surface Finish | Stainless steel 316, Brush polish | |||
| Ingress Protection | Full IP66/IP69K Protection | |||
| Dimensions (L x W x H) | 400 x 320 x 66.90 mm (15.7” x 12.6” x 2.63”) | |||
| WeightNet Weight | 7.42kg (16.3lb) | |||
| Operating System | WES7-E, WES7-P, Windows 7 Pro, Window 10 Pro/ Win10 IoT, Linux |
