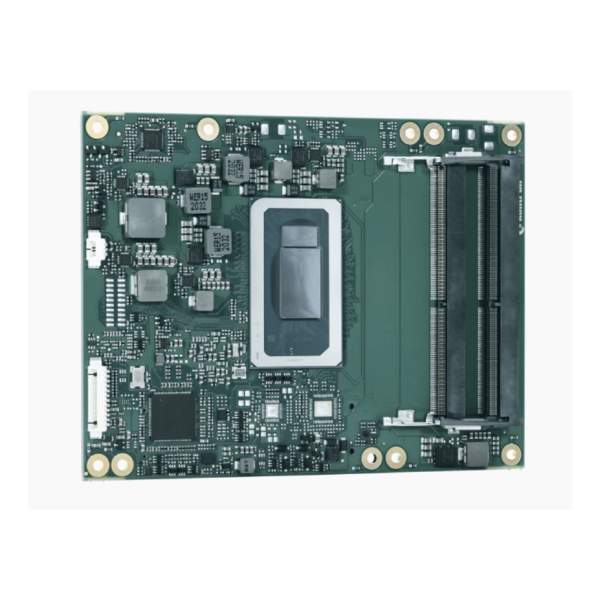

Kontron COMe-bRP6 (E2)

Komputer modułowy COM Express® Basic Typu 6 oparty na procesorach Intel® Core™ 13 generacji Raptor Lake-P

Kontron COMe-bRP6 (E2)

  • Do 64 GB pamięci DDR5
  • Do 2,5 Gb Ethernet z obsługą TSN
  • Opcjonalny dysk SSD NVMe na pokładzie
  • Wersje klasy przemysłowej

SKU: 38041-0000-25-7

Description

Opis

Nowe moduły COM-Express®, oparte na Intel® Core™ 13. generacji (poprzednia nazwa kodowa Raptor Lake-P), oferują znaczny wzrost wydajności w porównaniu z poprzednią generacją i są wyposażone w maksymalnie 14 rdzeni opartych na hybrydowej architekturze wydajności Intel®.

Moduły COM-Express® zapewniają podstawowe funkcje klasy przemysłowej, takie jak obsługa pamięci z kodem korekcji błędów w paśmie (IBECC), Intel® Time Coordinated Computing (Intel® TCC), Time-Sensitive Networking (TSN) i rozszerzone temp. zakres od -40C do +85C (praca).

Wszystkie funkcje są idealne do zastosowań w wymagających obszarach, takich jak automatyka przemysłowa, opieka zdrowotna i motoryzacja.

Karta katalogowa Manual

FEATURES

Compliance COM Express® Basic Pin-out Type 6
Dimension (H x W) 125 x 95 mm
CPU Intel® 13th Generation Core™ family
For details see table (CPU variants) given below
Chipset Integrated SoC
Main Memory 2x DDR5 SO-DIMM with up to 32 GByte per channel (non-ECC)
Graphics Controller Intel® Iris® Xe Graphics on i7/i5 processors
Intel® UHD Graphics on i3/Celeron® processors
Ethernet Controller Intel® I226LM/I226IT
Ethernet Up to 2.5Gb Ethernet with TSN support (depending on SKU)
Storage 2x SATA 6Gb/s
Flash Onboard Up to 1 TByte NVMe SSD (on request)
PCI Express 5x PCIe 3.0 (On request: 6x without Ethernet, up to 8x without Ethernet & SATA or alternatively 8x with additional PCIe Switch)
2×4 PCIe 4.0 on PEG Lanes #0-7 1×8 PCIe 4.0 on PEG Lanes #8-15 (depending on SKU)
Display DDI1: DP++, DDI2: DP++, DDI3: DP++, VGA: -,
LVDS: Dual Channel 18/24bit
USB 4x USB 3.2 Gen2 (incl. USB 2.0) + 4x USB 2.0
Serial 2x serial interface (RX/TX only)
Audio High Definition Audio interface
Common Features (G) SPI, LPC, SMB, Fast I²C, Staged Watchdog, RTC
Special Features POSCAP capacitors, Trusted Platform Module TPM 2.0
Power Management ACPI 6.0
Power Supply 8.5 V – 20 V Wide Range, Single Supply Power
BIOS AMI Aptio V
Operating System Windows®10, Linux, VxWorks (project based)
Temperature Commercial temperature: 0 °C to +60 °C operating, -30 °C to +85 °C non-operating
Industrial temperature: -40 °C to +85 °C operating, -40 °C to +85 °C non-operating
Humidity 93 % relative Humidity at 40 °C, non-condensing (according to IEC 60068-2-78)

VARIANTS

COMe-bRP6 E2 i7-13800HRE
38041-0000-25-7
COMe-bRP6 E2 i7-13800HRE COM Express® basic pin-out type 6 Computer-on-Module with Intel® Core™ i7-13800HRE, 6×2.5GHz, 2x DDR5 non-ECC SO-DIMM, industrial temperature grade
COMe-bRP6 E2 i5-13600HRE
38041-0000-27-5
COMe-bRP6 E2 i5-13600HRE COM Express® basic pin-out type 6 Computer-on-Module with Intel® Core™ i5-13600HRE, 4×2.7GHz, 2x DDR5 non-ECC SO-DIMM, industrial temperature grade
COMe-bRP6 E2 i3-13300HRE
38041-0000-21-3
COMe-bRP6 E2 i3-13300HRE COM Express® basic pin-out type 6 Computer-on-Module with Intel® Core™ i3-13300HRE, 4×2.1GHz, 2x DDR5 non-ECC SO-DIMM, industrial temperature grade
COMe-bRP6 E2 i7-1370PRE
38041-0000-19-7
COMe-bRP6 E2 i7-1370PRE COM Express® basic pin-out type 6 Computer-on-Module with Intel® Core™ i7-1370PRE, 6×1.9GHz, 2x DDR5 non-ECC SO-DIMM, industrial temperature grade
COMe-bRP6 E2 i5-1350PRE
38041-0000-18-5
COMe-bRP6 E2 i5-1350PRE COM Express® basic pin-out type 6 Computer-on-Module with Intel® Core™ i5-1350PRE, 4×1.8GHz, 2x DDR5 non-ECC SO-DIMM, industrial temperature grade
COMe-bRP6 E2 i3-1320PRE
38041-0000-17-3
COMe-bRP6 E2 i3-1320PRE COM Express® basic pin-out type 6 Computer-on-Module with Intel® Core™ i3-1320PRE, 4×1.7GHz, 2x DDR5 non-ECC SO-DIMM, industrial temperature grade
COMe-bRP6 i7-13800HE
38040-0000-25-7
COMe-bRP6 i7-13800HE COM Express® basic pin-out type 6 Computer-on-Module with Intel® Core™ i7-13800HE, 6×2.5GHz, 2x DDR5 non-ECC SO-DIMM
COMe-bRP6 i5-13600HE
38040-0000-27-5
COMe-bRP6 i5-13600HE COM Express® basic pin-out type 6 Computer-on-Module with Intel® Core™ i5-13600HE, 4×2.7GHz, 2x DDR5 non-ECC SO-DIMM
COMe-bRP6 i3-13300HE
38040-0000-21-3
COMe-bRP6 i3-13300HE COM Express® basic pin-out type 6 Computer-on-Module with Intel® Core™ i3-13300HE, 4×2.1GHz, 2x DDR5 non-ECC SO-DIMM
COMe-bRP6 i7-1370PE
38040-0000-19-7
COMe-bRP6 i7-1370PE COM Express® basic pin-out type 6 Computer-on-Module with Intel® Core™ i7-1370PE, 6×1.9GHz, 2x DDR5 non-ECC SO-DIMM
COMe-bRP6 i5-1350PE
38040-0000-18-5
COMe-bRP6 i5-1350PE COM Express® basic pin-out type 6 Computer-on-Module with Intel® Core™ i5-1350PE, 4×1.8GHz, 2x DDR5 non-ECC SO-DIMM
COMe-bRP6 i3-1320PE
38040-0000-17-3
COMe-bRP6 i3-1320PE COM Express® basic pin-out type 6 Computer-on-Module with Intel® Core™ i3-1320PE, 4×1.7GHz, 2x DDR5 non-ECC SO-DIMM

ACCESSORIES

COME EVAL CARRIER2 T6
38116-0000-00-5
COME EVAL CARRIER2 T6 COM Express® Evaluation Carier Type 6
HSP COME-BRP6 CU-CORE THREADED
38040-0000-99-0
HSP COME-BRP6 CU-CORE THREADED Heatspreader for COM-bRP6, Cu-core, threaded mounting holes
HSP COME-BRP6 CU-CORE THROUGH
38040-0000-99-1
HSP COME-BRP6 CU-CORE THROUGH Heatspreader for COM-bRP6, Cu-core, through mounting holes
HSK COME-BASIC ACTIVE (W/O HSP)
38025-0000-99-0C05
HSK COME-BASIC ACTIVE (W/O HSP) Active Cooler for COMe-bxL6/bDV7 to be mounted on HSP
HSK COME-BASIC PASSIVE (W/O HSP)
38025-0000-99-0C06
HSK COME-BASIC PASSIVE (W/O HSP) Passive Cooler for COMe-bxL6/bDV7 to be mounted on HSP
