Description

Opis

Moduł COM Express® COMe-bEP7 oparty na procesorach AMD EPYC™ serii 3000 rozszerza rodzinę produktów Kontron o serwerowe platformy COM. COMe-bEP7 to bezgłowa i ekonomiczna opcja dla aplikacji wymagających dużej mocy obliczeniowej, takich jak obrazowanie medyczne i serwery.

COMe-bEP7 to wysokowydajny moduł o skalowalnej wydajności do 16 rdzeni. Moduł obsługuje opcjonalne cztery gniazda SODIMM z pamięcią do 128 GB, a także cztery porty 10Gb Ethernet. COMe-bEP7 jest oferowany do zastosowań komercyjnych lub rozszerzonych zakresów temperatur.

Karta katalogowa Manual

FEATURES

Compliance

COM Express® Basic, Pin-out Type 7

Dimension (H x W)

95 x 125 mm

CPU

Commercial Temperature:
AMD E3101 4C/4T, 35W TDP, 2.1GHz (2.9GHz)
AMD E3151 4C/8T, 45W TDP, 2.7GHz (2.9GHz)
AMD E3201 8C/8T, 30W TDP, 1.5GHz (3.1GHz)
AMD E3251 8C/16T, 55W TDP, 2.5GHz (3.1GHz)
AMD E3351 12C/24T, 65-80W TDP, 1.9GHz (3.0GHz)
AMD E3451 16C/32T, 85-100W TDP, 2.45GHz (3.0GHz)Industrial Temperature:
AMD E3255 8C/16T, 30-55W TDP, 2.0/2.5GHz (3.1GHz)

Main Memory

SP4r2 (single-die):
2x DDR4 SODIMM for up to 64GB non-ECC/ECC memorySP4 (dual-die):
2x DDR4 SODIMM for up to 64GB non-ECC/ECC memory
4x DDR4 SODIMM for up to 128GB on request

Ethernet Controller

Internet i210

Ethernet

4x 10GbE KR/SFI

Hard Disk

2x SATA

PCI Express / PCI support

SP4r2 (single-die):
24x PCIe Gen 3.0SP4 (dual-die):
32s PCIe

USB	4x USB 3.1, 4x USB 2.0

Serial

2x serial interface

Common Features

SPI Flash, LPC, SMB, Dual Staged Watchdog, RTC
On request for SP4 (dual-die): NVMe Support

Power Management

OS ACPI PM support for Critical Shutdown

Power Supply

ATX, 8.5V- 20 V Wide Range Single Supply

Special Features

TPM

Humidity

93% relative Humidity at 40°C, non-condensing

Temperature

Commercial Grade Version: 0°C to 60°C
Industrial Grade Version: -40°C to 85°C

BIOS

AMI UEFI

Operating System

Linux x64 – Ubuntu
Windows Server x64 2016

Supported Modules

COMe-bEP7 xxxxx commercial grade
COMe-bEP7 E2 xxxxx industrial grade

VARIANTS

COMe-bEP7 E3101 68010-0000-01-1		COMe-bEP7 E3101
COMe-bEP7 E3151 68010-0000-51-1		COMe-bEP7 E3151
COMe-bEP7 E3201 68010-0000-01-2		COMe-bEP7 E3201
COMe-bEP7 E3251 68010-0000-51-2		COMe-bEP7 E3251
COMe-bEP7 E3351 68010-0000-51-3		COMe-bEP7 E3351
COMe-bEP7 E3451 68010-0000-51-4		COMe-bEP7 E3451
COMe-bEP7 E3451 with 4 SODIMM sockets 68010-0000-61-4		COMe-bEP7 E3451 with 4 SODIMM sockets
COM Express® Eval Carrier2 T7 68301-0000-00-x		COM Express® Eval Carrier2 T7

ACCESSORIES

COMe Mount Kit 5mm 1set 38017-0000-00-5	COM Express® Mounting Kit 5mm 1set for threaded HSP and Cooling Solutions
COMe Mount Kit 5mm 100sets 38017-0100-00-5	COM Express® Mounting Kit 5mm 100 sets
COMe Mount KIT 8mm 1set 38017-0000-00-0	COM Express® Mounting Kit 8mm 1set for threaded HSP and Cooling Solutions
COMe Mount Kit 8mm 100sets 38017-0100-00-0	COM Express® Mounting Kit 8mm 100sets
ADA-COMe-Height-dua 38019-0000-00-0	ADA-COMe-Height-dua
KAB-HSP 200mm 96079-0000-00-0	Fan cable adapter for 3pin standard FAN connector to 3pin molex connector, cable length 200mm
KAB-HSP 40mm 96079-0000-00-2	Fan cable adapter for 3pin standard FAN connector to 3pin molex connector, cable length 40mm
COMe Eval Carrier T7 68300-0000-00-0	COM Express® Eval Carrier Type 7	more
COM Express® Eval Carrier2 T7 68301-0000-00-x	COM Express® Eval Carrier2 T7
HSP COMe-bEP7 THREADED 68010-0000-99-0	HSP COMe-bEP7 THREADED
HSP COMe-bEP7 THROUGH 68010-0000-99-1	HSP COMe-bEP7 THROUGH

Zainteresowany tym produktem?

Serdecznie zapraszamy do kontaktu!

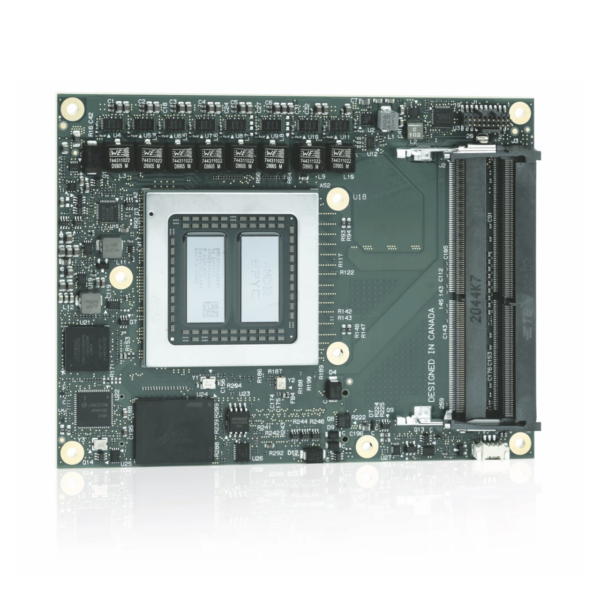

Kontron COMe-bEP7
