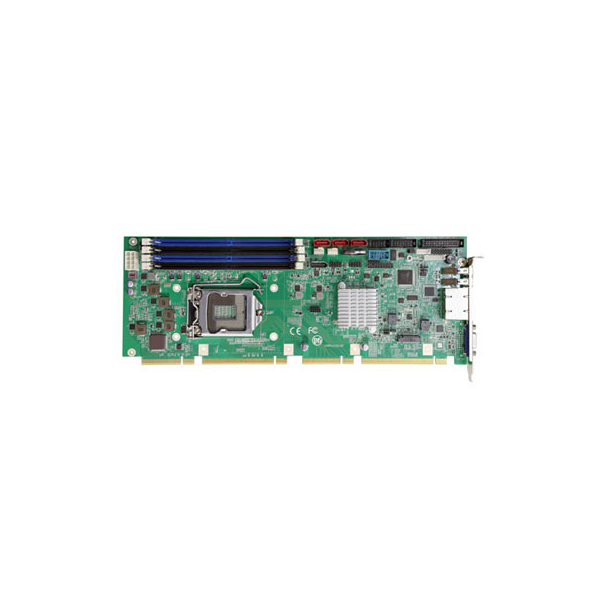

ARBOR HiCORE-i89Q1/i89Q2

Pełnowymiarowa karta procesora oparta na procesorach Intel® Core™ i7/i5/i3Intel® LGA1151 6 generacji

ARBOR HiCORE-i89Q1/i89Q2

  • Specyfikacja PICMG 1.3
  • Obsługa procesorów Intel® LGA1151 6. generacji i3 / i5 / i7 Core
  • Zintegrowane podwójne gigabitowe sieci Ethernet
  • Obsługa DDR4 Non-ECC Long-DIMM
  • Obsługiwane SATA RAID 0, 1, 5, 10
  • Obsługa dysku Intel® M.2 SSD
  • Obsługa Intel® vPro i AMT (tylko dla Core i7 i i5)
  • Obsługa Intel® Solid State Drive (SSD) Embedded „E SKU”
SKU: HiCORE-i89Q2-V-x4

Description

Opis
Karta katalogowa Manual
System
CPU Support 6th Generation Intel® Core™ i7/i5/i3 processors in LGA1151 socket
Chipset Intel® PCH Q170
Memory 4 x 288-pin DDR4 Long-DIMM sockets, supporting 2133/1866MHz SDRAM up to 64GB
BIOS AMI UEFI BIOS
TPM Supports TPM 1.2 & 2.0 daughterboard via LPC connector (optional)
Watchdog Timer 1~255 levels reset
I/O Interface
Super I/O Fintek F81768
USB Port 4 x USB 2.0 ports to Golden finger
4 x USB 2.0 ports w/ pin-header
2 x USB 3.0/2.0 ports on bracket
Serial Port 1 x RS-232
1 x RS-232/422/485 selectable
Expansion Bus 1 x PCIe x4 Lanes or
4 x PCIe x1 Lanes
1 x PCIe x16 lanes Gen. 3
4 x PCI masters
LPC interface
Storage Six Serial ATA ports with 600MB/s HDD transfer rate
– 3 ports on board
– 1 port to M.2 socket M-Key, supporting SATA/PCIe x4 depending on SSD module
– 2 port to Golden finger
SATA RAID 0, 1, 5, 10 supported
Ethernet Chipset 1 x Intel® i219LM PCIe GbE PHY
1 x Intel® i210AT PCIe GbE controller
Audio Interface One 1×9-pin wafer connector for HD Audio daughterboard
Digital I/O 8-bit programmable digital input/output
KB/MS 6-pin wafer connector for keyboard and mouse via Y-cable
Parallel Port SPP/EPP/ECP mode selectable
Display
Graphic Chipset Integrated Intel® HD Graphics (depends on CPU)
Graphics Interface 1 x DVI-I port on board (HiCORE-i89Q1) or 1 x VGA port on board (HiCORE-i89Q2)
1 x DisplayPort
OS Support
Windows 10 64-bit
Linux: Ubuntu
Mechanical & Environmental
Power Input DC 12V, 5V
Power Consumption 2.66A@12V
Operating Temp. 0 ~ 60°C (32 ~ 122°F)
Operating Humidity 10 ~ 95% @ 60°C (non-condensing)
Dimension (L x W) 338 x 126 mm (13.3″ x 4.96″)
Ordering Information
HiCORE-i89Q1-D-x4 Socket LGA1151/PCH Q170 for 6th Generation Intel® Core™ i7/ i5/ i3 processors PICMG 1.3 full size SBC with BIOS for 1 x PCIe x4 w/ DVI-I
HiCORE-i89Q1-D-x1 Socket LGA1151/PCH Q170 for 6th Generation Intel® Core™ i7/ i5/ i3 processors PICMG 1.3 full size SBC with BIOS for 4 x PCIe x1 w/ DVI-I
HiCORE-i89Q2-V-x4 Socket LGA1151/PCH Q170 for 6th Generation Intel® Core™ i7/ i5/ i3 processors PICMG 1.3 full size SBC with BIOS for 1 x PCIe x4 w/ VGA
HiCORE-i89Q2-V-x1 Socket LGA1151/PCH Q170 for 6th Generation Intel® Core™ i7/ i5/ i3 processors PICMG 1.3 full size SBC with BIOS for 4 x PCIe x1 w/ VGA
Optional Accessories
PBPE-07SA 7-slot PICMG 1.3 backplane
PBPE-13SA 13-slot PICMG 1.3 backplane
PBPE-10SA (OEM request) 10-slot PICMG 1.3 backplane
HS-89Q1-C1 Copper CPU cooler for Intel® Core™ processor series
DP Cable Male DP port to female DP port cable
FCDB-1111 Realtek ALC888 HD Audio daughterboard
SCDB-3291 TPM 1.2 Daughter board with Infineon OPTIGA TPM SLB9660
SCDB-3292 TPM 2.0 Daughter board with Infineon OPTIGA TPM SLB9665
