| System | |
| CPU | AMD® Geode™ LX800 500MHz processor |
| Memory | 1 x 200-pin DDR SO-DIMM Socket supporting 200MHz SDRAM up to 1GB |
| Chipset | AMD® Geode™ CS5536 |
| BIOS | Phoenix-Award PnP Flash BIOS |
| Storage | 1 x Ultra ATA, supports 2 IDE devices 1 x CompactFlash Type II Socket |
| Watchdog Timer | 1~255 levels reset |
| I/O Interface | |
| I/O Chip | Winbond W83627HG |
| Serial Port | 2 x COM ports (1 x RS-232, 1 x RS-232/422/485 selectable) |
| Parallel Port | SPP/EPP/ECP mode selectable |
| USB Port | 4x USB 2.0 ports |
| KB/MS | One 1 x 6-pin wafer connector for PS/2 interfqace keyboard and mouse |
| Expansion | PC/104 interface |
| Ethernet | |
| Chipset | 1 x Realtek RTL8100CL PCI 10/100Base-T Ethernet controller |
| Display | |
| Graphic Chipset | AMD® Geode™ LX800 CPU integrated VGA controller with 2D Engine (shared memory Max. 64MB) |
| Graphics Interface | LCD: 18/24-bit TTL up to 1280 x 1024 |
| Mechanical & Environmental | |
| Power Requirement | Small 4P AT power connector |
| Power Consumption | 1.99A/5V |
| Operating Temp. | -40 ~ 85°C (-40 ~ 185°F) |
| Operating Humidity | 0 ~ 90% (non-condensing) |
| Dimension (L x W) | 96 x 90 mm (3.8” x 3.5”) |
| Ordering Information | |

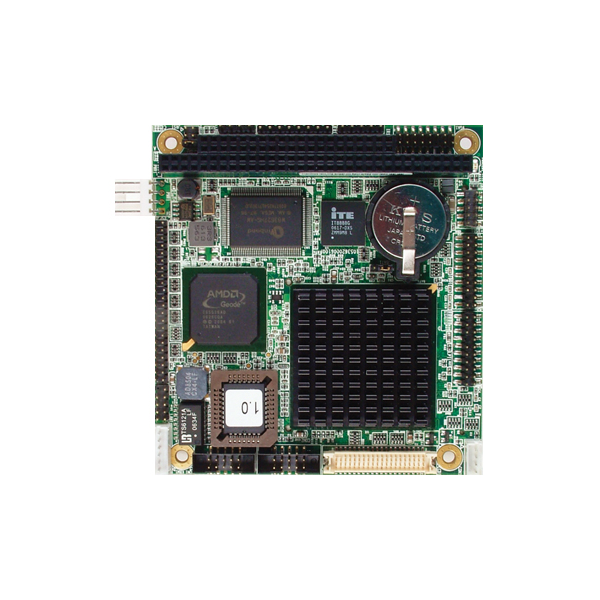

| EmModule-621E | AMD® Geode™ LX800 PC/104 CPU Module |
| Optional Accessories | |
| CBK-09-5362-00 | Cable kit 1 x IDE cable 1 x USB cable 2 x COM port cables 1 x LPT cable 1 x KB & MS cable 1 x VGA cable 1 x FDD cable 1 x Ethernet cable |
