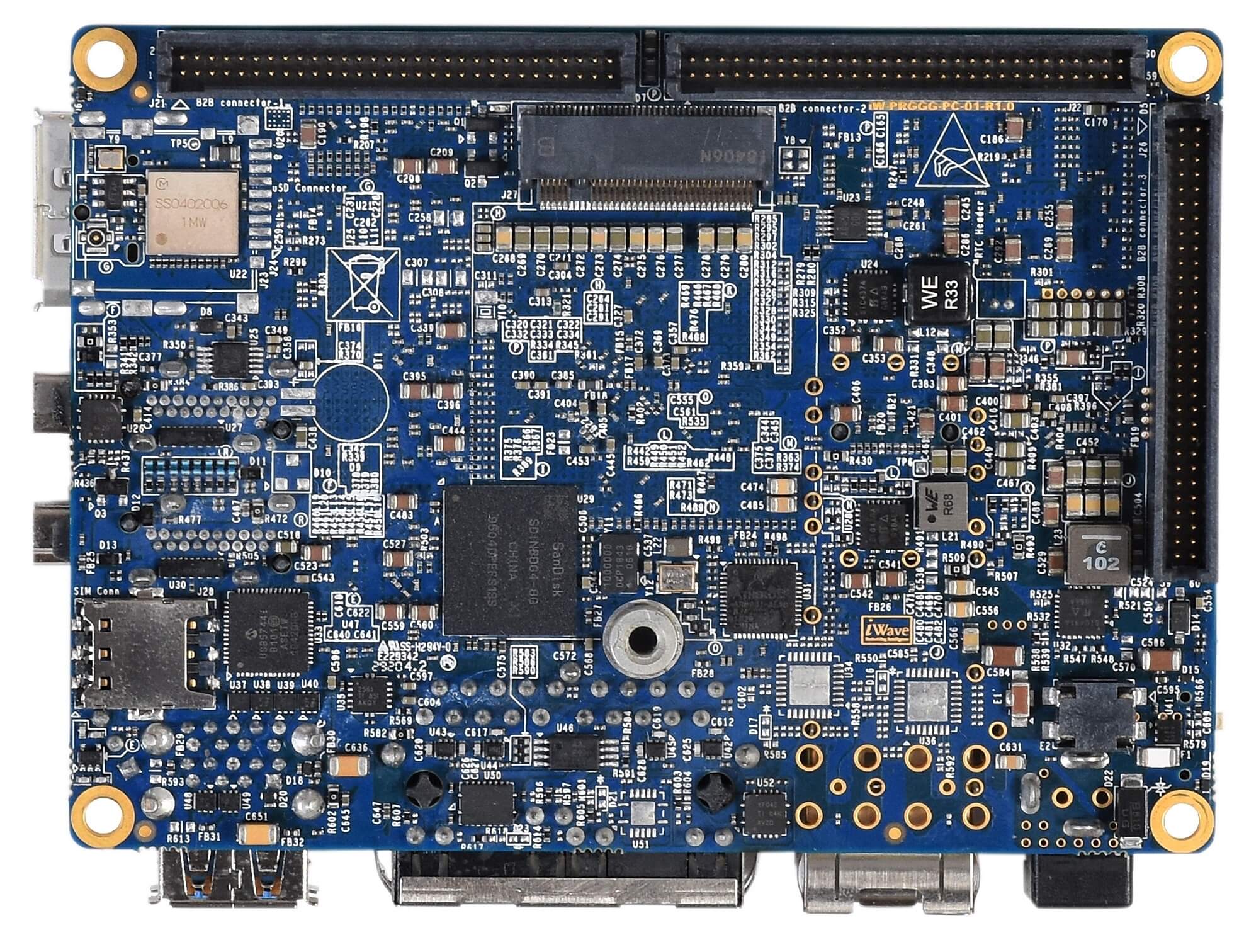

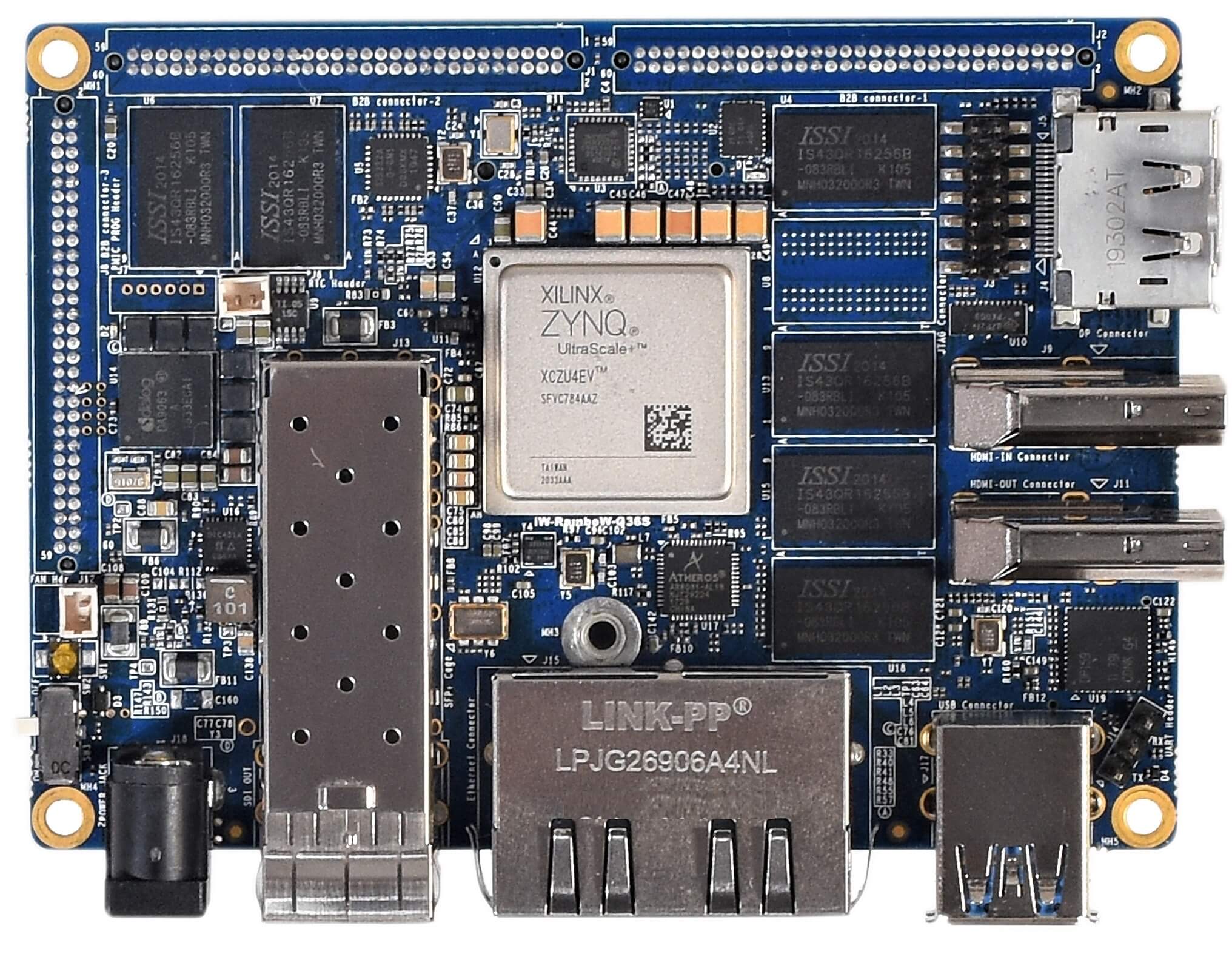

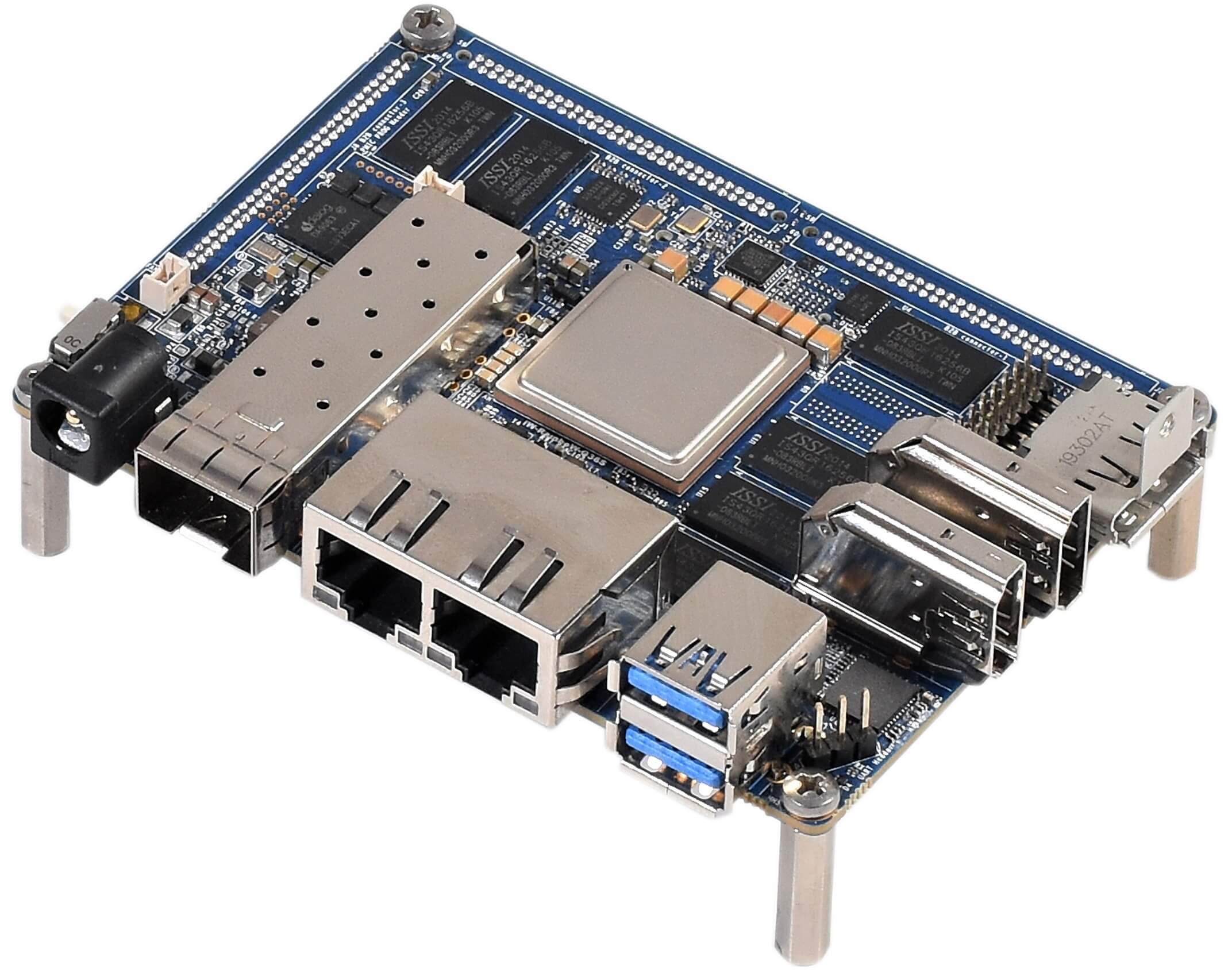

iWave iW-RainboW-G36S ZU5/ZU4/ZU3/ZU2 – Zynq UltraScale+ MPSoC SBC

iWave iW-RainboW-G36S ZU5/ZU4/ZU3/ZU2 – Zynq UltraScale+ MPSoC SBC

1 (1)

2 (1)

iWave iW-RainboW-G36S ZU5/ZU4/ZU3/ZU2 – Zynq UltraScale+ MPSoC SBC

ZU5/ZU4/ZU3/ZU2 Zynq Ultrascale+ MPSoC with SFVC784 package
64bit, 8GB PS DDR4 & 32bit, 4GB PL DDR4
4K HDMI Input & Output Ports and Display Port
One 10G Ethernet &Dual 1G Ethernet
11 a/b/g/n/ac Wi-Fi & BT 5.0
Three 80pin Connector with120 PL & 10 PS User IOs
12G SDI Video Input & Output Ports (Optional)
Industrial grade availability
Compact form factor 100mm x 72mm
10+ Years availability

SKU: iWave iW-RainboW-G36S ZU5/ZU4/ZU3/ZU2 – Zynq UltraScale+ MPSoC SBC

Opis

Description

Karta katalogowa Manual

ZU5/ZU4/ZU3/ZU2 – Zynq Ultrascale+ MPSoC

Processing System (PS)
- Quad/Dual ARM Cortex-A53 @ 1.5GHz, Dual Cortex-R5 @ 600MHz
- 264/H.265 Video Encoder/Decoder (VCU)
- ARM Mali-400MP2 GPU @ 677MHz
Programming Logic (PL)
- Up to 256K Logic cells

Memory Interfaces

64bit, 2GB DDR4 with ECC for PS (Upgradable upto 8GB)
32bit, 1GB DDR4 for PL (Upgradable upto 4GB)
8GB eMMC Flash (Upgradable)
Micro SD Connector^#
EEPROM for MAC Address

Features from PS

WLAN 802.11a/b/g/n/ac& BT 5.0 Combo Module with Antenna connector
Dual 10/100/1000Mbps Ethernet through RJ45 Magjack
Dual USB3.0 Type A Jack
DP 1.2a Display Port Connector
2 Key B Connector with SATA 3.1& USB3.0
Debug UART Header
JTAG Header
RTC Coin cell Header

Features from PL GTH Transceivers*

4K HDMI 2.0 Output Connector
4K HDMI 2.0 Input Connector
10G Ethernet through SFP+ Connector
12G SDI Input through BNC Jack^#
12G SDI Output through BNC Jack^#

Board to Board Connectors

PS Interfaces	SPI x 1 CAN x 2 I2C x 1 UART x 1^#
PL Interfaces	FPGA IOs from HP Bank – 20LVDS/40SE FPGA IOs from HD Bank – 41LVDS/82SE

OS Support

Linux BSP – Petalinux 2022.2
Baremetal BSP – Vivado 2020.1

General Features:

Power Input	12V through Power Jack
Operating Temperature	-40°C to +85°C
Form Factor	100mm x 72mm
BSP Support
Environment Specification	RoHS & REACH Compliant
Compliance	CE*

#Optional
* PL GTH Transceivers are not supported in ZU3 & ZU2 MPSoC
*Under Progress
