| Specifications |
| CPU | – On board INTEL® BayTrail-M N2930 1.83GHz Quad Cores CPU – 2 Phase CPU Power Support |
| Chipset | – INTEL® BayTrail-D/M J1900/N2930 SOC Chipset |
| I.O Chipset | – ITE IT8786E |
| Memory | – 1* SO-DIMM slot – Support DDR3L 1333 – Max. capacity of system memory up to 8G |
| Expansion Slots | – 1* Mini PCI-E connector(Half size) |
| Storage | – 1* Serial ATA2 3Gb/s connector – 1* M-SATA Connector(Full size) |
| Audio | – ALC662 Audio CODEC – HD Audio CODEC |
| Ethernet LAN | – 2* INTEL® GIGALAN – INTEL® I211AT Chip |
| LVDS | – Onboard 24-bit Dual channel |
| USB | – 5* USB 2.0/1.1(1 distribute in back panel, 4 distribute in mid-board) – 1* USB3.0 (distribute in back panel) |
| Special Features | – Support CPU Smart Fan – Support Watch dog Technology – Support GPIO Technology – Support Power Onboard (9~24v wide voltage input) – Support VGA header – Support 1*20-pin HDMI header – Support SIM Card socket – Support 2*RS422/RS485/RS232 for COM2&COM3 – Support Amplifier function(3W) – Support Power& Reset Button – All Tantalum Capacitor design – All Power Pack MOSFET design |

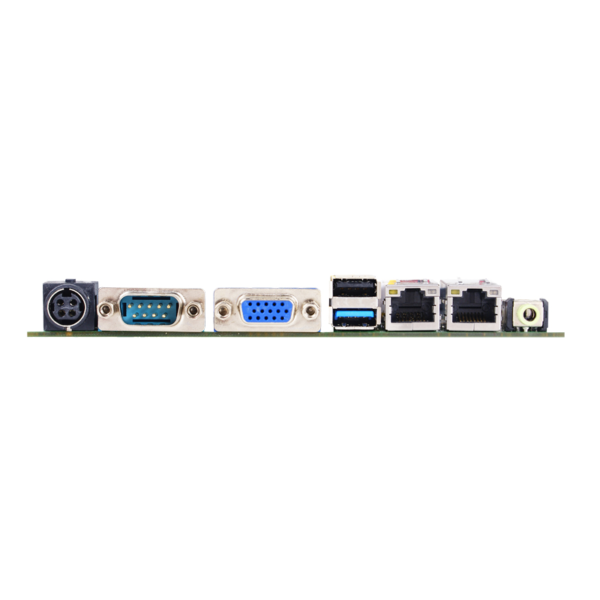

| Back Panel I/O | – 1* DC-JACK(Co-lay 4-pin Power connector) – 1* USB2.0/1.1 port – 1* USB3.0 port – 2* RJ-45 ports – 1* COM port – 1* Line-out connector – 1* VGA port (Max. Resolution: 1920*1200@60Hz) |
| Internal I/O | – 2* USB 2.0/1.1 headers for 4 USB 2.0/1.1 ports – 1* CPU / Chassis Fan connector – 2* System Fan connectors – 5* COM headers (Support RS485/RS422/RS232 for COM2&COM3) – 1* Parallel header – 1* 4-pin SATA Power connector – 1* 12-pin VGA header (Max. Resolution: 1920*1200@60Hz) – 1* 20-pin HDMI header (Max. Resolution: 1920*1200@60Hz) – 1* 24-bit Dual Channel LVDS header (Max. Resolution: 1920*1200@60Hz) – 1* 4-pin Amplifier header – 1* GPIO header – 1* Mini PCI-e connector – 1* M-SATA connector – 1* SATA2.0 connector – 1* 4-pin PS/2 header |
| BIOS | – AMI 64MB DIP Flash ROM |
| Temperature | – Operating: 0°C ~ 60°C – Storage: -20°C ~ 85°C |
| Form Factor | – EPIC Form Factor(165mm X 115mm) |
* Specifications subject to change without notice, not responsible for typographical errors. Does not include HDD or OS.
| Accessories |
| Part Number | Description |
| JNLBT-IE2930 M/B | |
| G01-SATAL-RD30-F | SATA cable |
| G01-PW4PS-2S-322F | COM cable |
